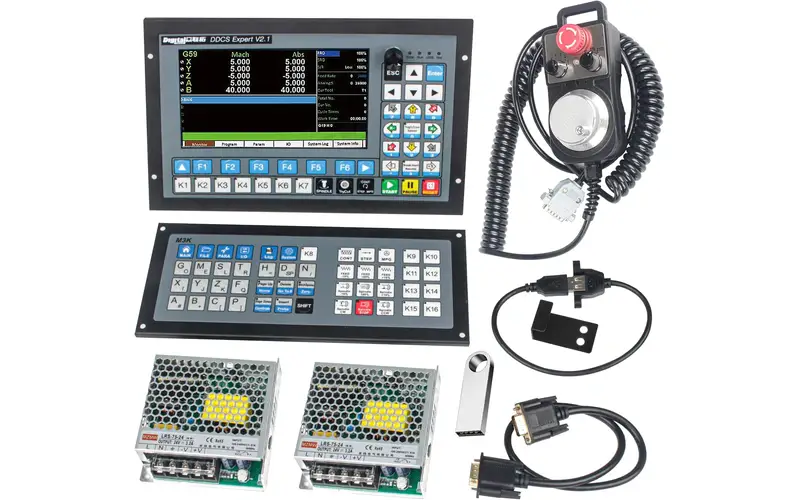

STANDALONE CONTROL
Operate CNC Motion from a 7-Inch Color Display

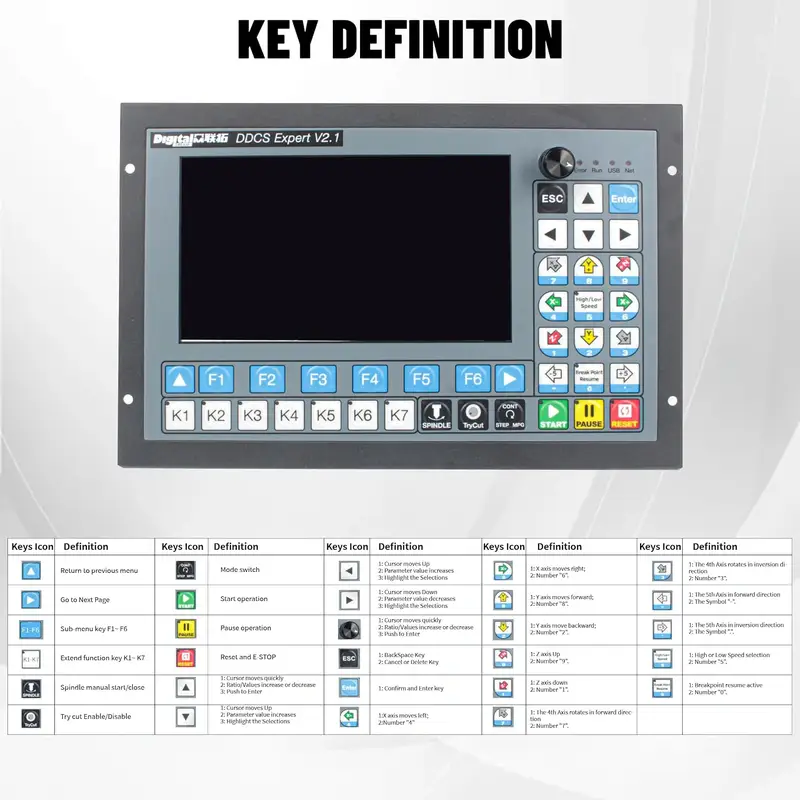

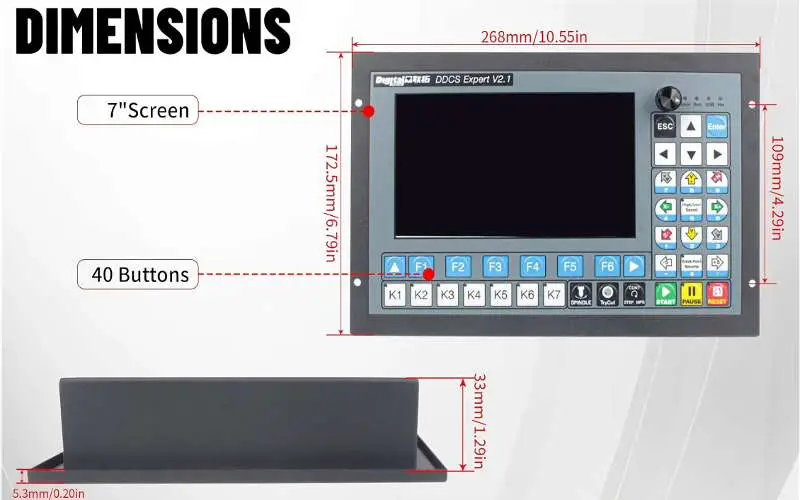

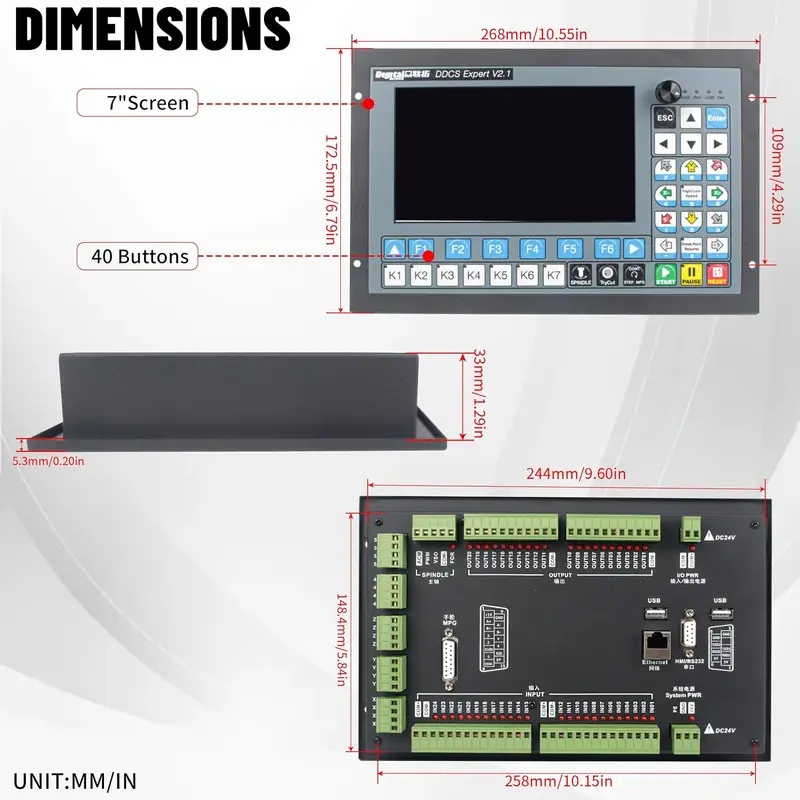

The DDCS Expert V2.1 runs as an offline standalone controller with a 7-inch full-color display, 1024 × 600 resolution and 40 operation keys. Its Linux-based operating system handles the user interface and code analysis.
FIVE-AXIS MOTION
Output up to 1 MHz for Each Axis
The system supports up to five axes and an output frequency of 1,000 kHz per axis. ARM and FPGA chips handle the interface, code analysis and underlying control algorithms.
I/O AND SPINDLE

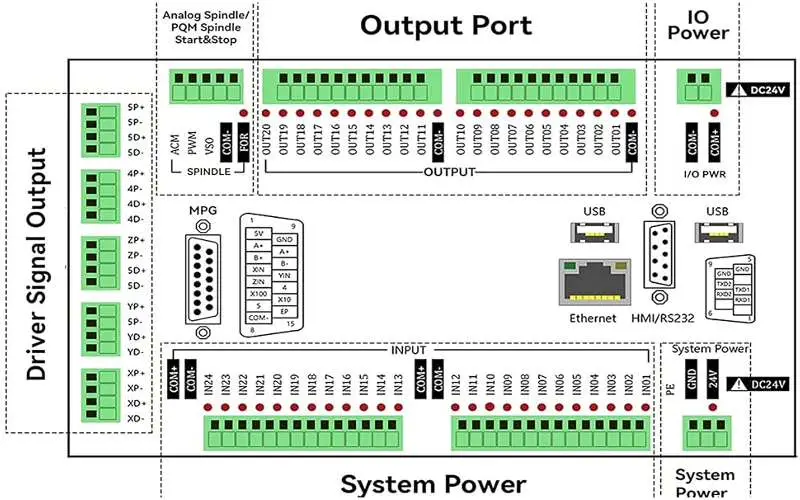

Connect Machine Inputs and Outputs

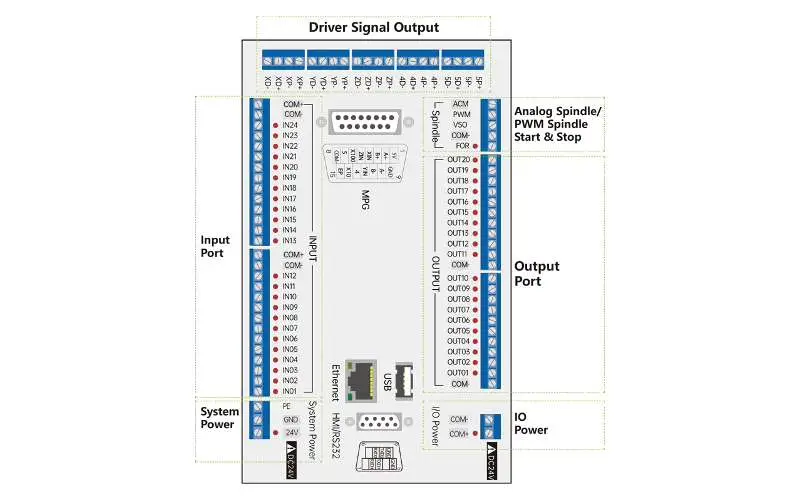

The controller provides 24 optically isolated digital inputs and 21 optically isolated digital outputs. Spindle control includes 0–10 V analog output and PWM output support.
PROBING AND TOOLING
Configure Probes, Tool Magazines and Compensation
Listed functions include floating and fixed probe modes, straight, gantry and disk-type tool magazines, and direction-gap, radius-gap and length compensation. The system can preview a processing path before machining.

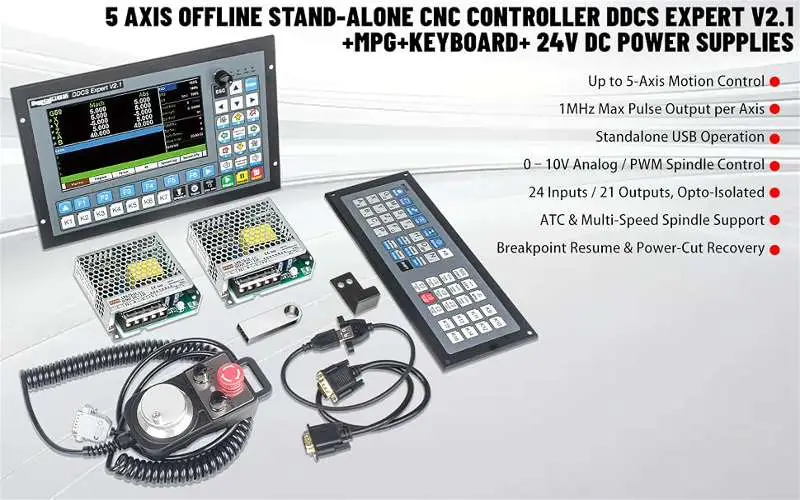

COMPLETE CONTROL KIT
Handwheel, Keyboard and Power Supplies Included

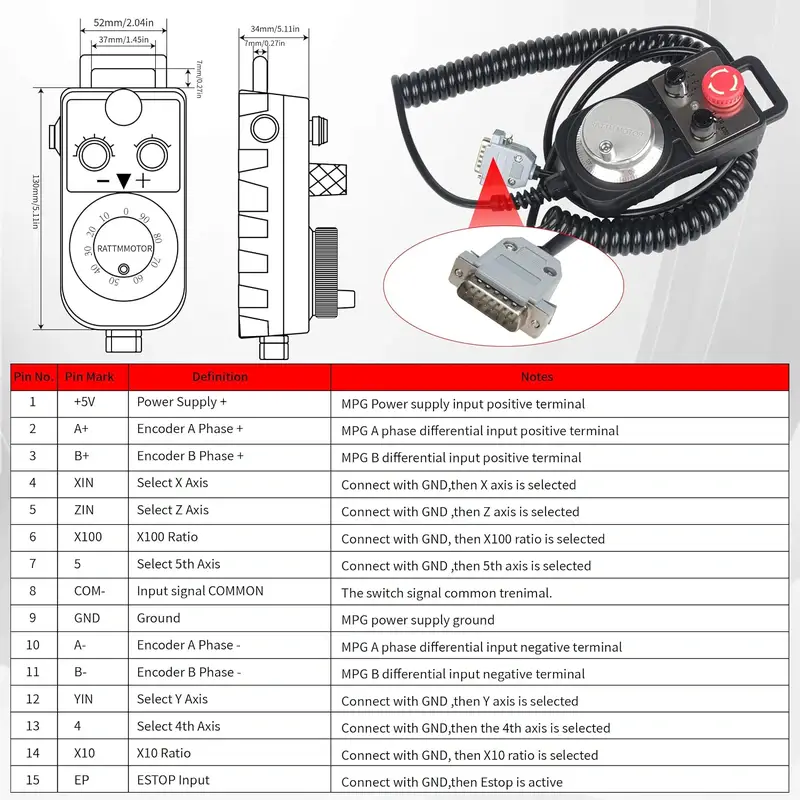

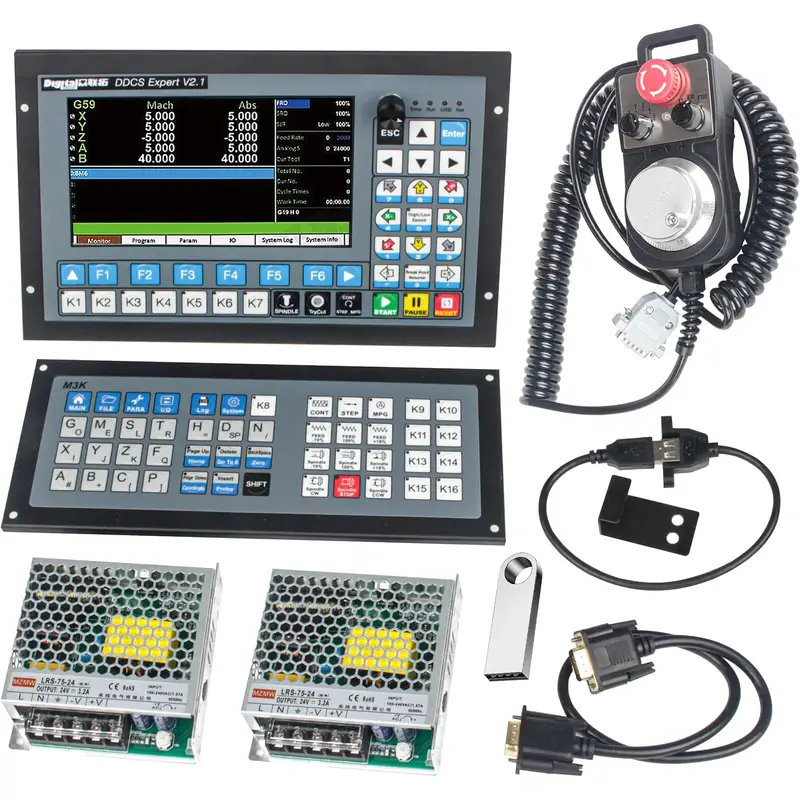

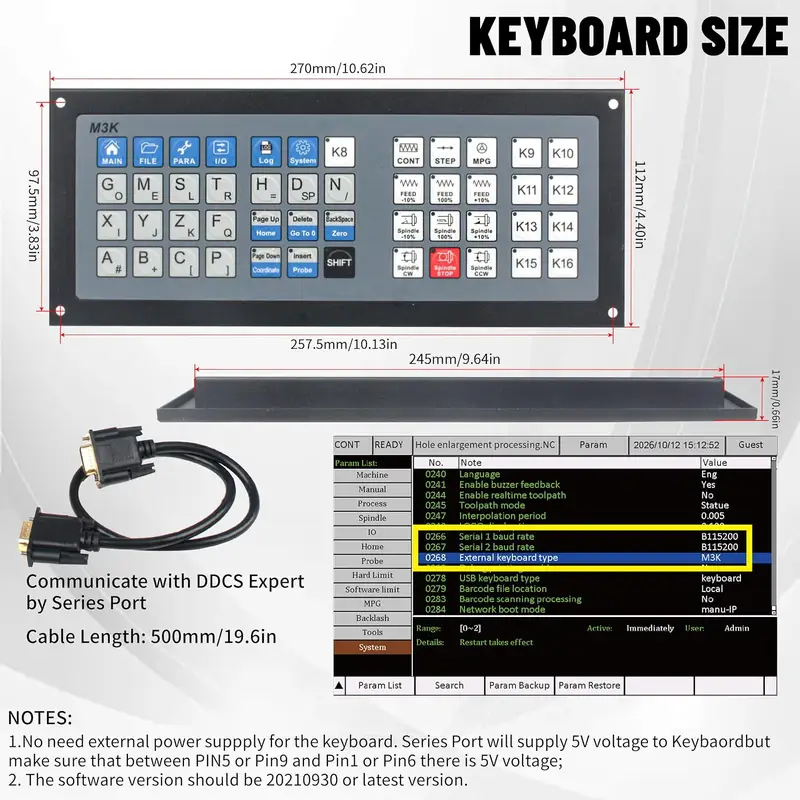

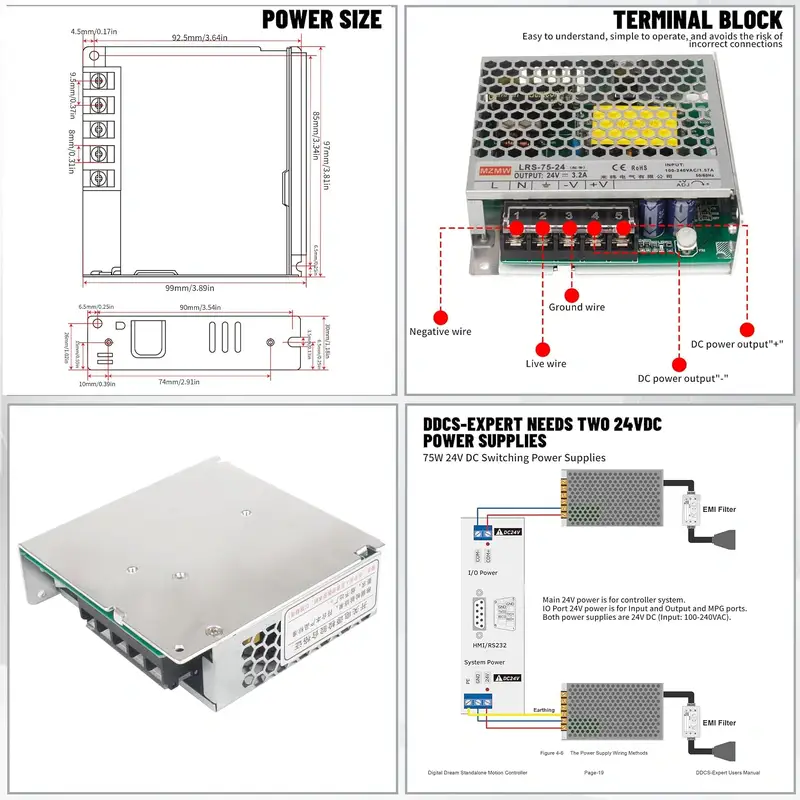

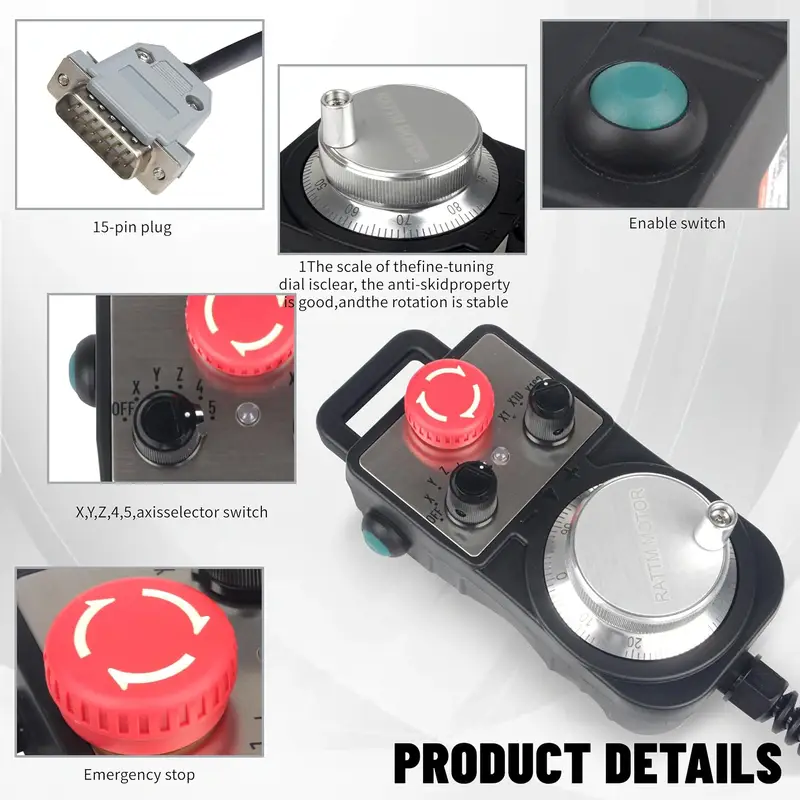

The package lists the DDCS Expert V2.1 controller, M3K extended keyboard, five-axis MPG pendant with emergency stop, two 75 W 24 V DC power supplies, matching cable, USB extension cable, network cable and 4 GB USB flash storage.
Frequently Asked Questions
How many axes does the DDCS Expert V2.1 support?
The controller supports up to five axes, with a maximum output frequency of 1,000 kHz per axis.
Can the controller operate without a computer?
Yes. The DDCS Expert is described as a standalone offline system with a 7-inch display and 40 operation keys.
What spindle control outputs are available?
The listed spindle controls are 0–10 V analog output and PWM output.
What accessories are included in the kit?
The package lists an M3K extended keyboard, five-axis MPG pendant with emergency stop, two 75 W 24 V DC power supplies, matching cable, USB extension cable, network cable and 4 GB USB flash storage.
Which CAD/CAM software is listed as compatible?
The supplied product information lists ArtCam, MasterCam, ProE, JDSoft SurfMill, Aspire and Fusion 360, among other software that supports standard G-code.
Which machine types are listed for use?

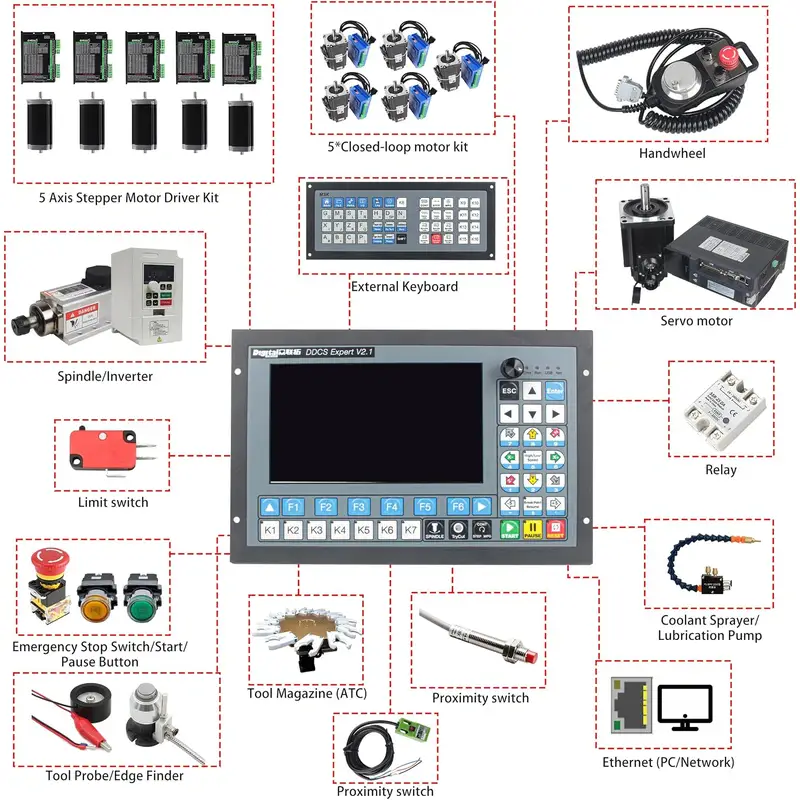

The supplied information lists CNC routers, milling machines, lathes, engraving machines, pick-and-place machines and cutters.
