MANUAL CNC CONTROL

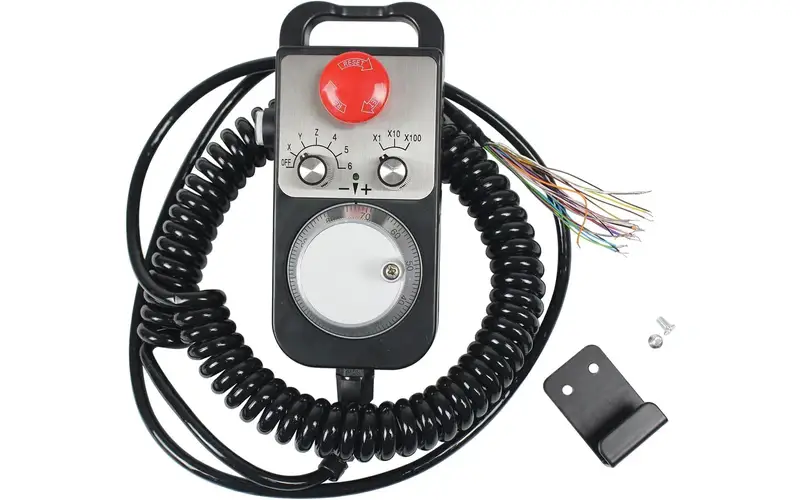

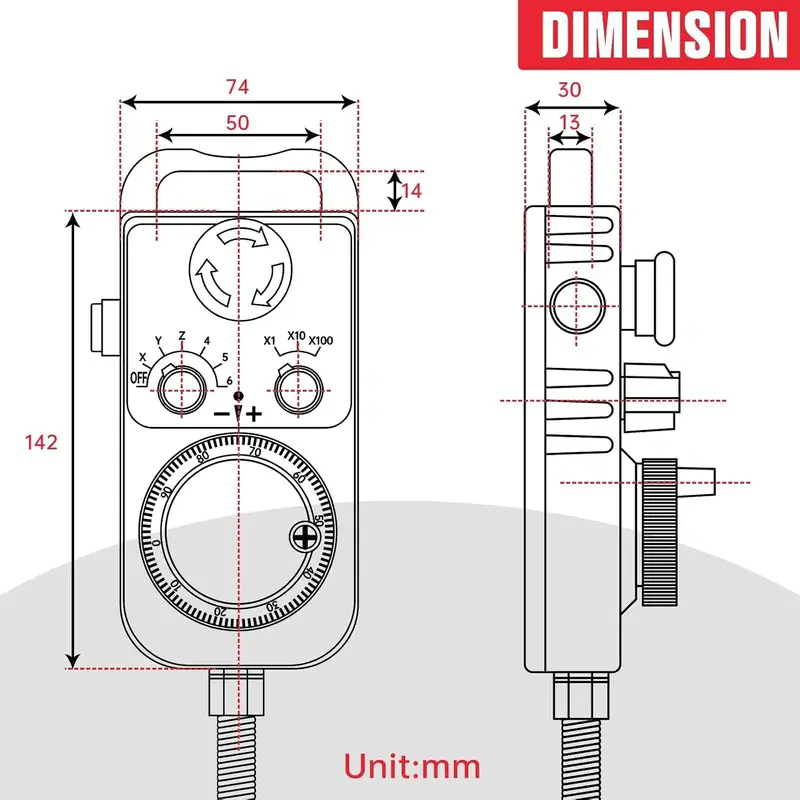

Select an Axis and Scale at the Handwheel

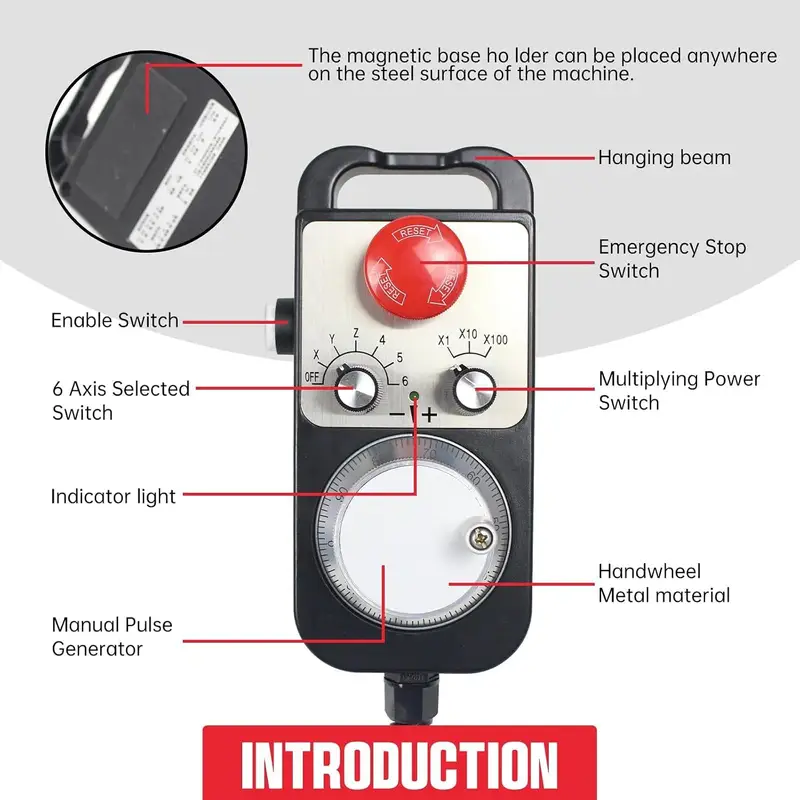

This 100 PPR manual pulse generator has an axis selector for OFF, X, Y, Z, 4, 5 and 6, plus selectable x1, x10 and x100 scales. It is listed for use with 3-, 4-, 5- and 6-axis CNC systems.
MACHINE-SIDE PLACEMENT

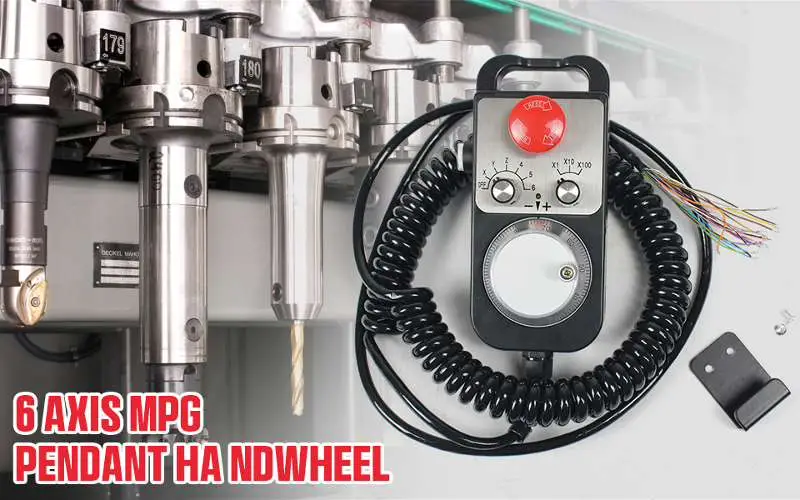

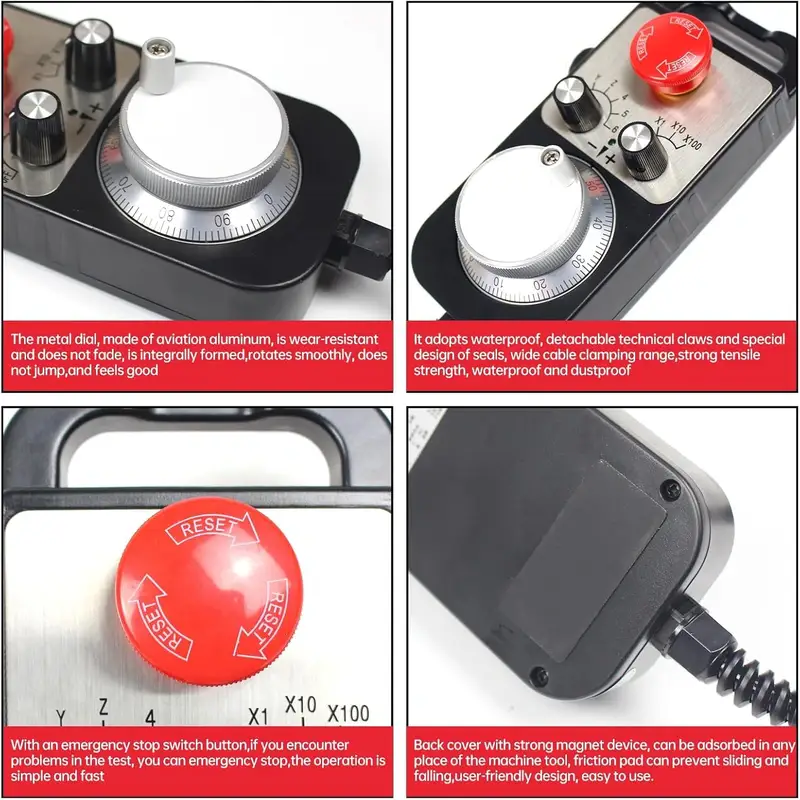

Position the Pendant on a Steel Surface

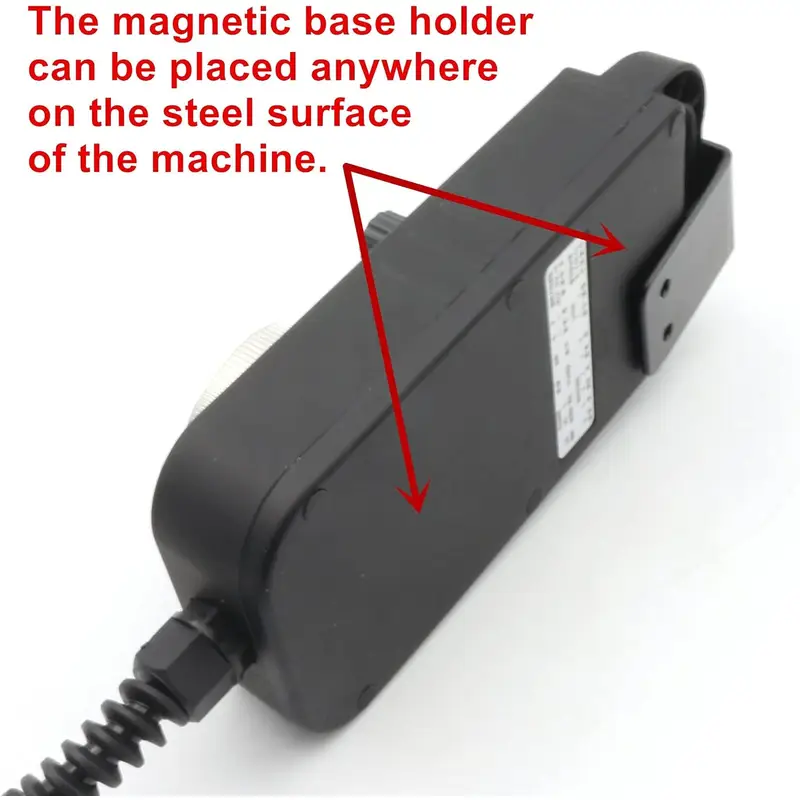

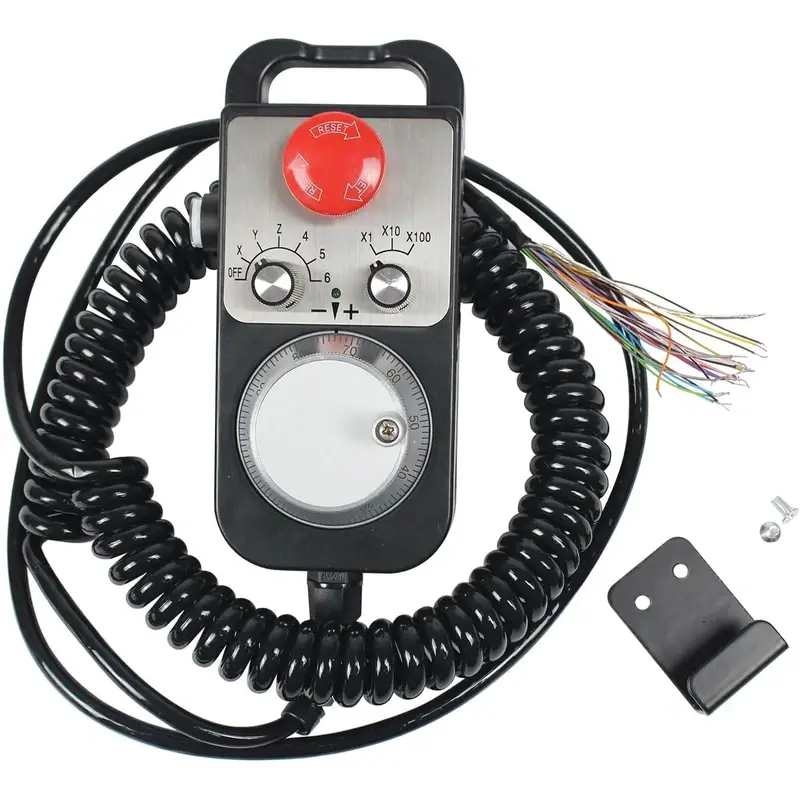

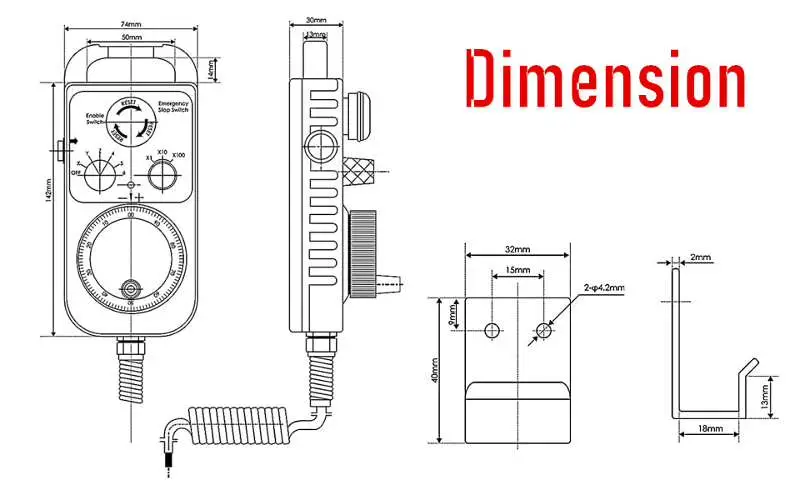

A magnetic base lets the handwheel holder attach to steel surfaces on the machine. The supplied information also specifies a 6 ft shielded cable.
POWER REQUIREMENT

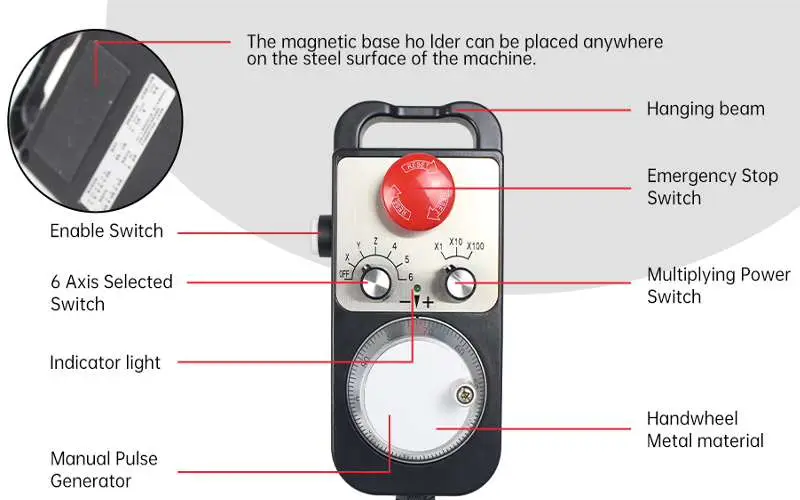

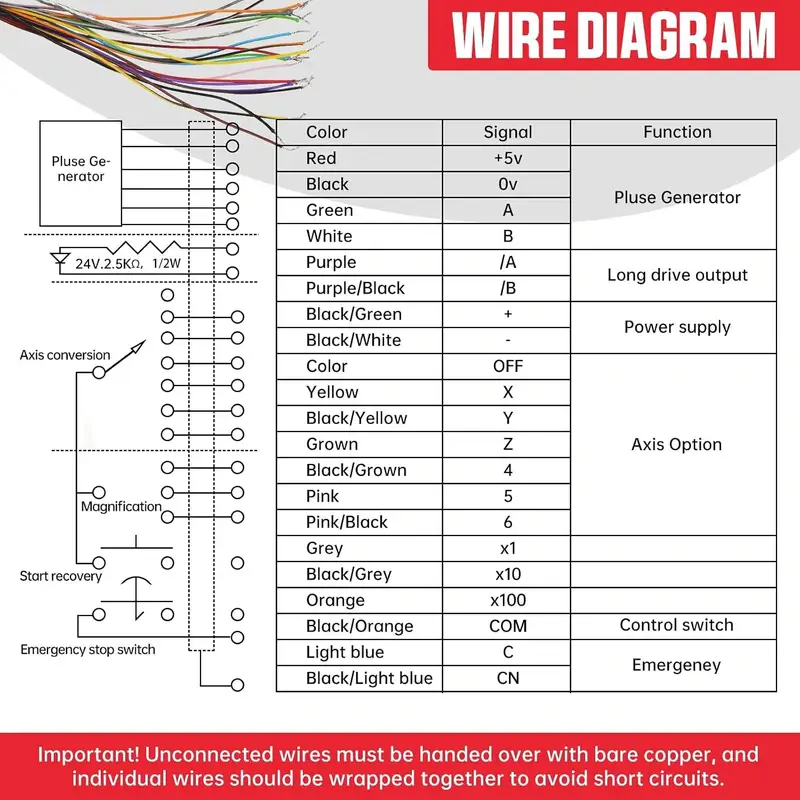

DC 5 V Pendant Input
The pendant requires a DC 5 V supply with ±5% tolerance. Its listed supply current is no more than 80 mA.
SYSTEM COMPATIBILITY
For Listed CNC Controller Systems
The product information names Siemens and Mitsubishi systems, along with Pou Yuen M600, M500, M520i and T300 series, Higerman, HANUC, GSK, Opened NC, KND, NUM and FAGOR.
Frequently Asked Questions
Which axes can be selected?
The selector positions are OFF, X, Y, Z, 4, 5 and 6.
What scale settings does the MPG handwheel have?
It has selectable x1, x10 and x100 scales.
What power does the handwheel require?
The listed supply requirement is DC 5 V ±5%, with supply current of no more than 80 mA.
Which CNC systems are listed as compatible?
The product information lists Siemens, Mitsubishi, Pou Yuen M600/M500/M520i/T300, Higerman, HANUC, GSK, Opened NC, KND, NUM and FAGOR systems.
Can the pendant be mounted on a machine?
Its magnetic base can be placed on a steel surface, and the handwheel has a 6 ft shielded cable.
Reviews
There are no reviews yet.
