OFFLINE CONTROL
Run G-Code Without a Computer

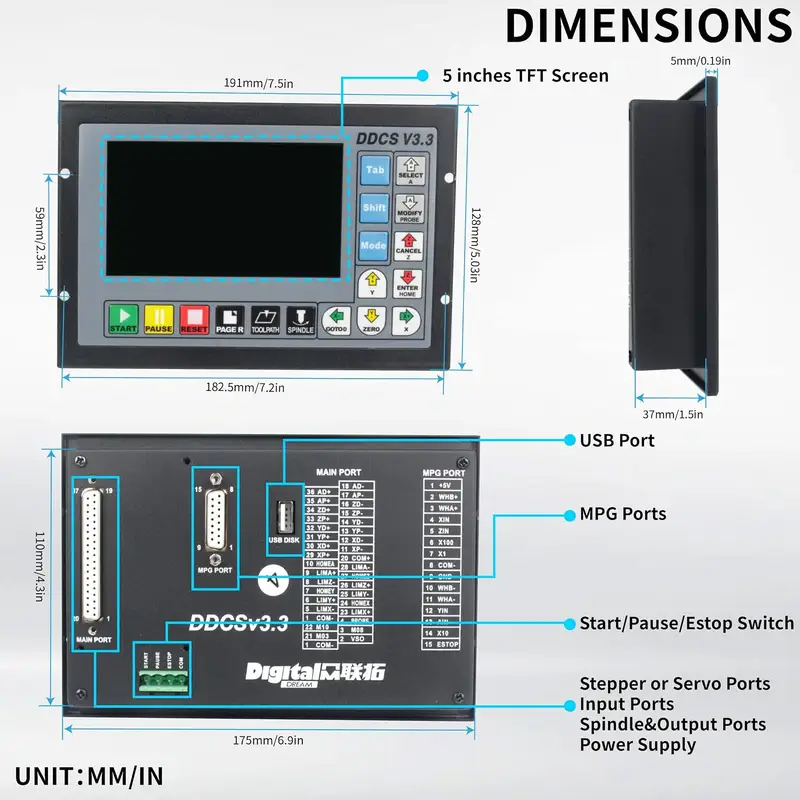

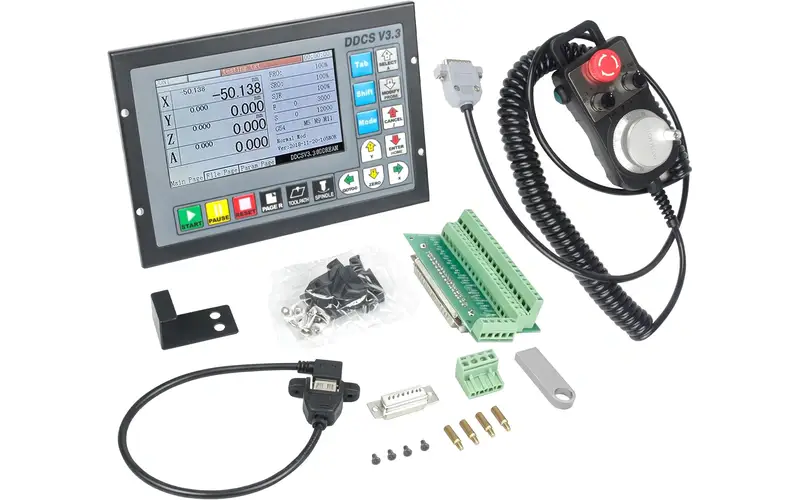

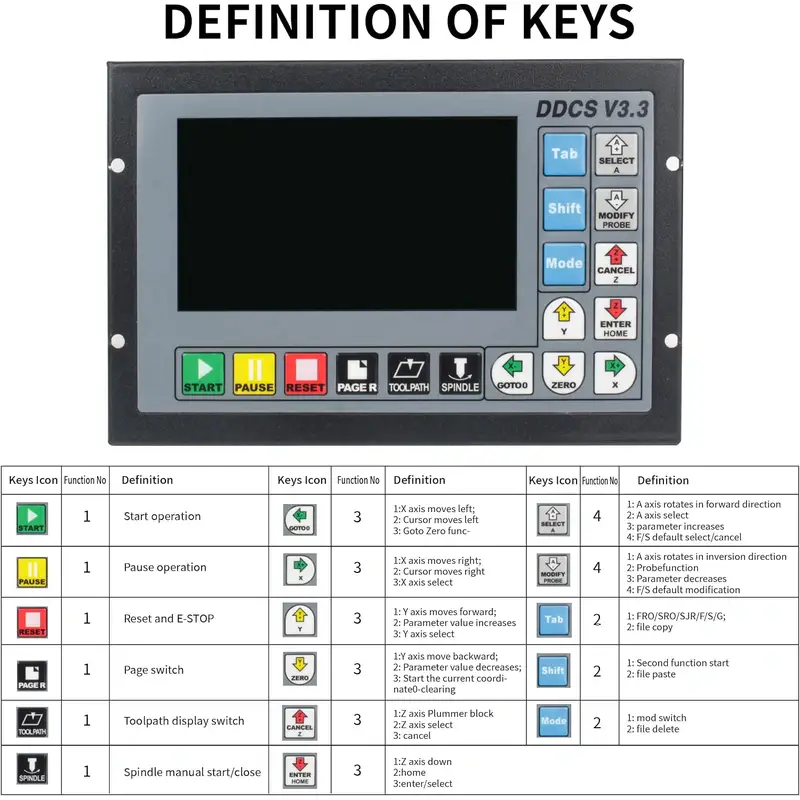

The standalone four-axis controller operates through a 5-inch TFT screen with 480 × 272 resolution and a 17-key panel. G-code files can be read from USB flash storage.
MOTION CONTROL
Four Axes with High-Speed Pulse Output
The controller provides up to 500 kHz output pulse frequency per axis and supports stepper and servo motor control. Jogging options include continuous, step and defined-distance movement.
I/O AND SPINDLE

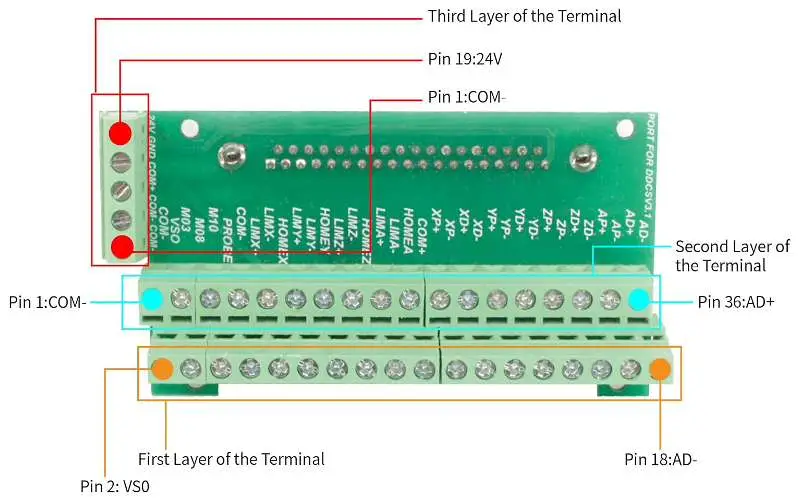

Connect Switches and Spindle Control

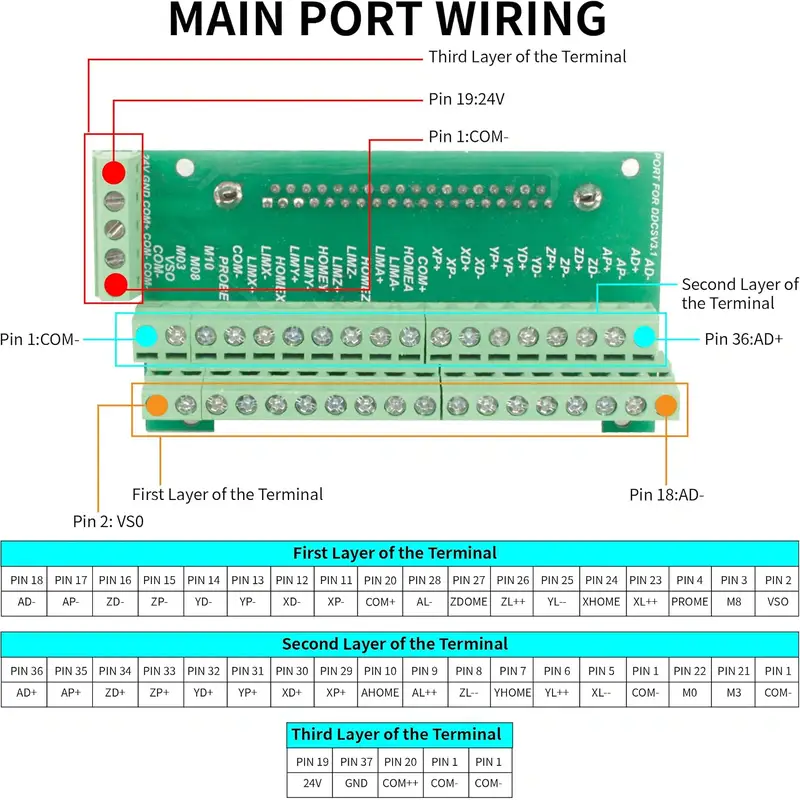

The controller has 16 optically isolated digital inputs, three optically isolated digital outputs, and supports NPN-type limit switches. Analog spindle control is 0–10 V; PWM output requires modification.

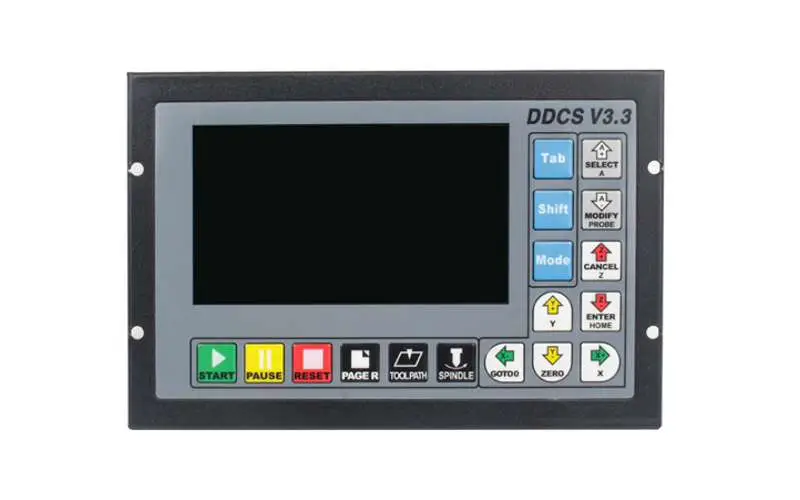

MPG HANDWHEEL
Select an Axis and Jog by Hand

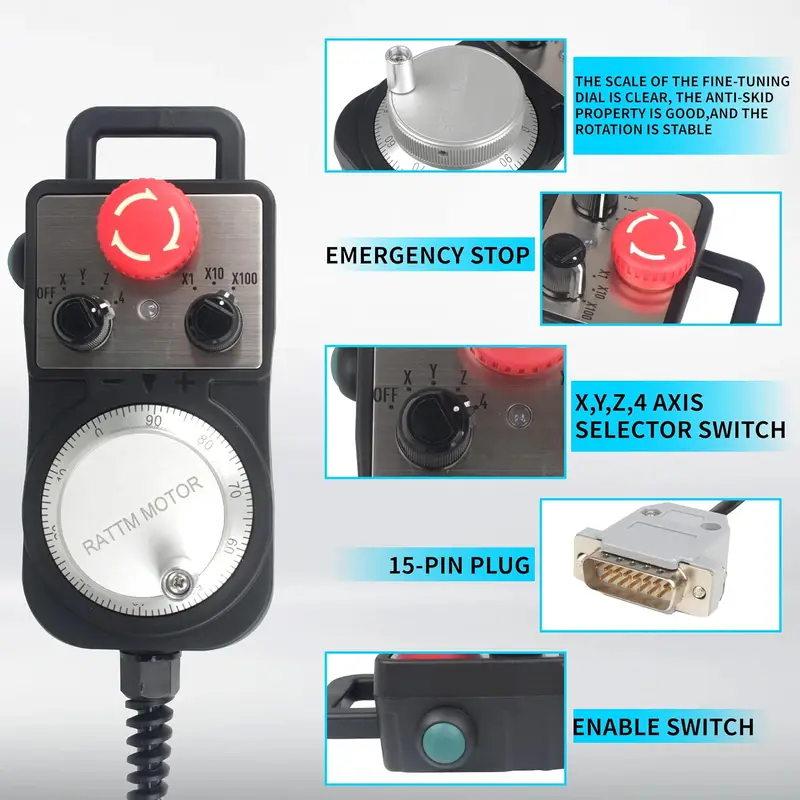

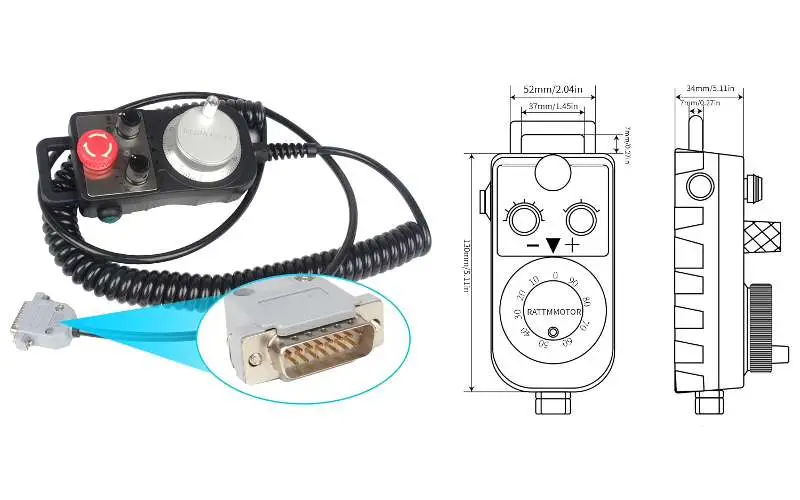

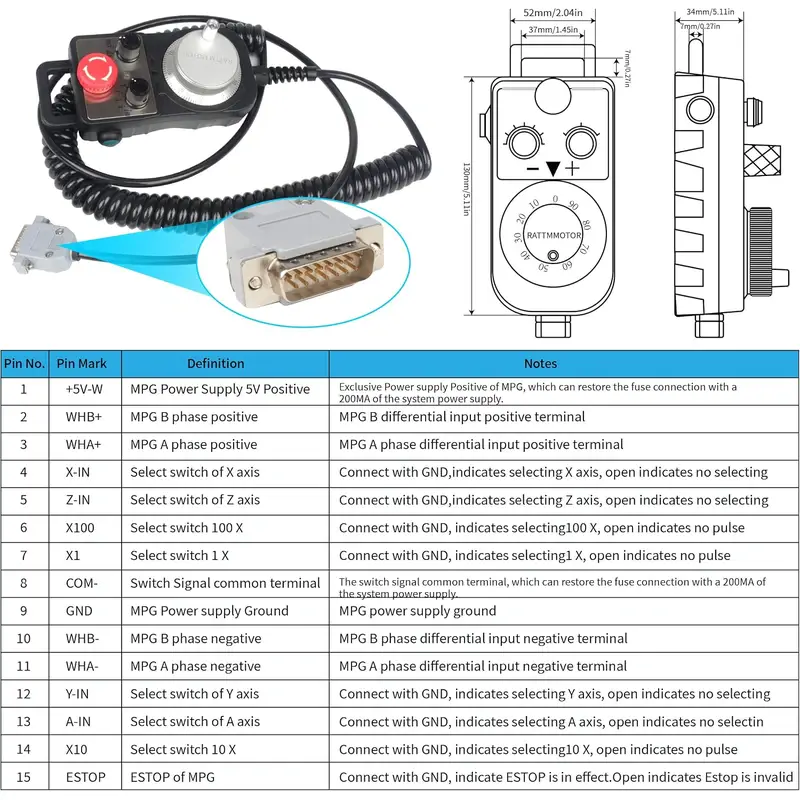

The included 100 PPR MPG handwheel selects X, Y, Z or the fourth axis, with x1, x10 and x100 multiplier settings. It has a 15-pin plug for the controller’s 15-pin MPG socket, plus an emergency-stop switch and LED indicator.
Frequently Asked Questions
Does this controller need a computer to operate?
No. The supplied product information describes it as a standalone system that operates without a computer.
How many axes does the controller support?
It is a four-axis motion controller with a maximum output pulse frequency of 500 kHz per axis.
What is included in the package?

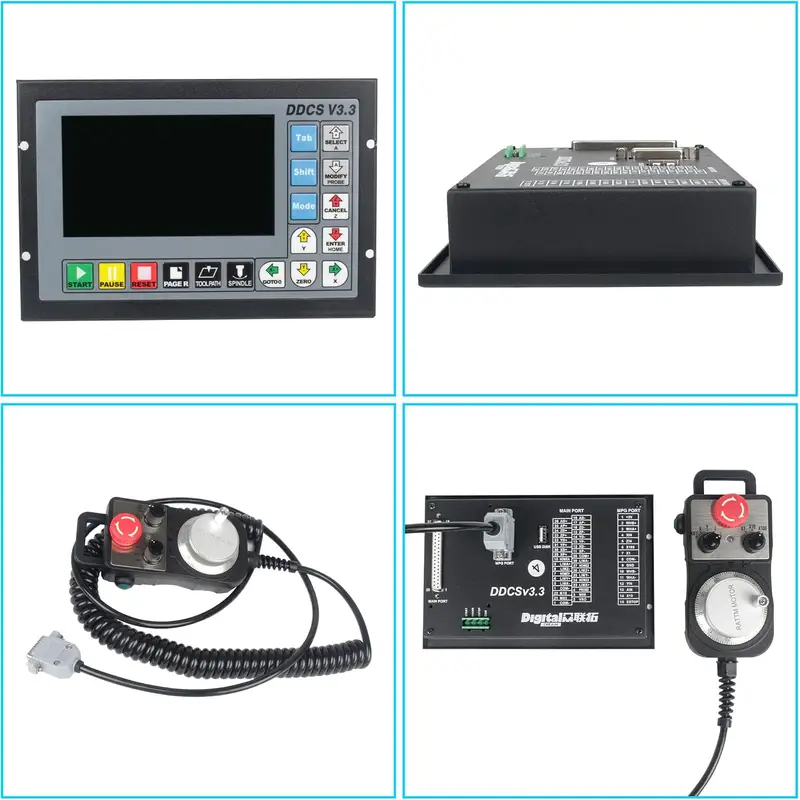

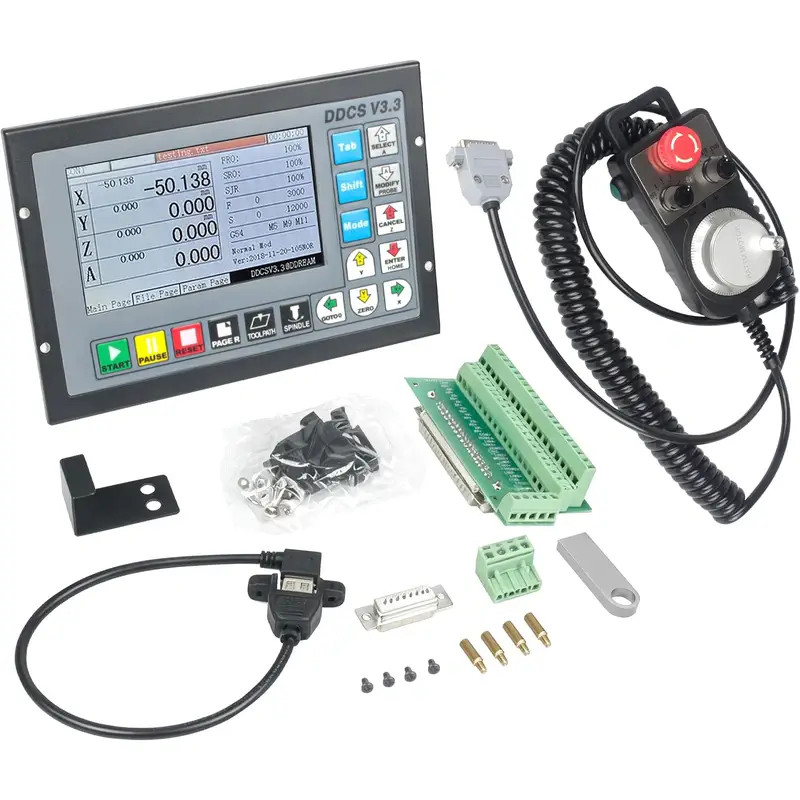

The listed included components are the controller and MPG handwheel.
What axis and multiplier settings does the MPG handwheel have?
The 100 PPR handwheel selects X, Y, Z or the fourth axis and offers x1, x10 and x100 multiplier settings.
What spindle control output does it provide?
It provides 0–10 V analog spindle control. The supplied information says the output can be modified for PWM.

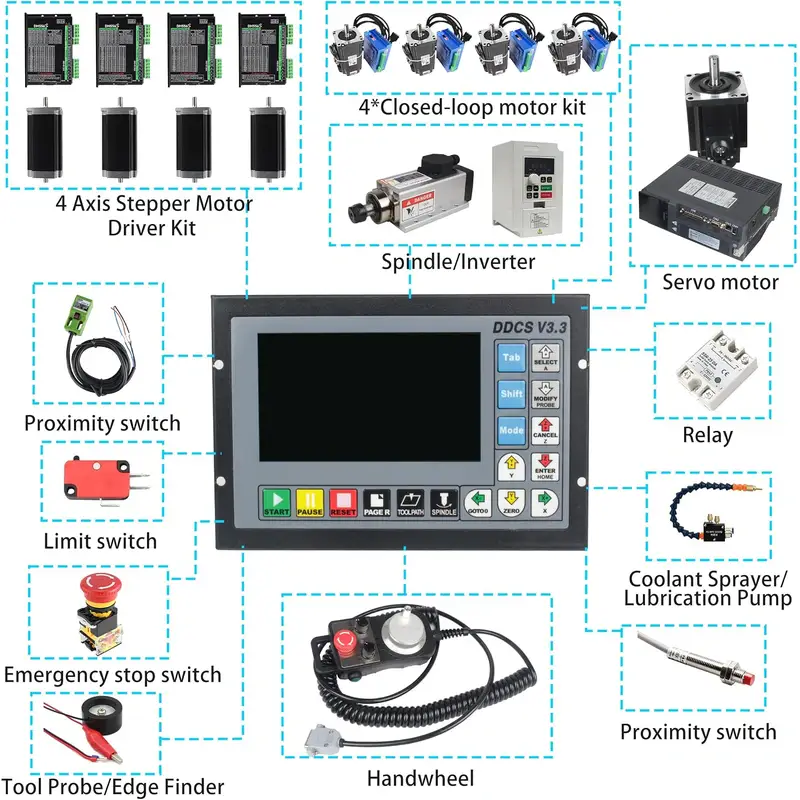

Which machine types are listed as applications?
The supplied information lists CNC routers, milling machines, engraving machines, lathes and cutters.
Reviews
There are no reviews yet.
