DESKTOP WORKSPACE
A Defined Area for Engraving Projects

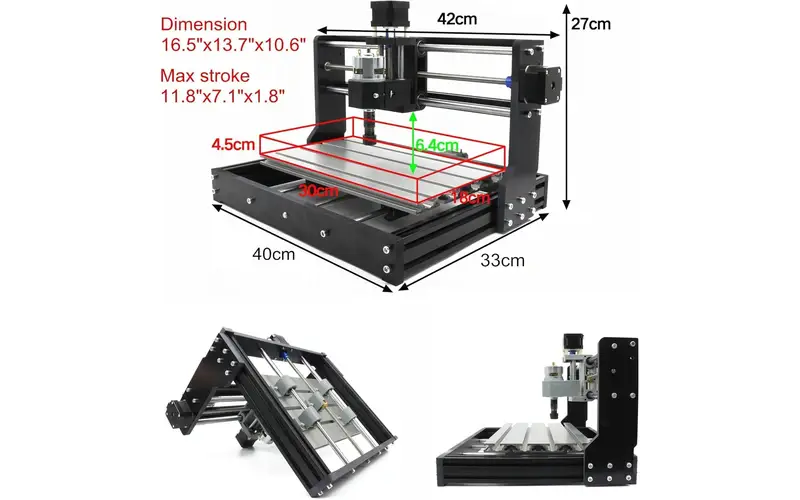

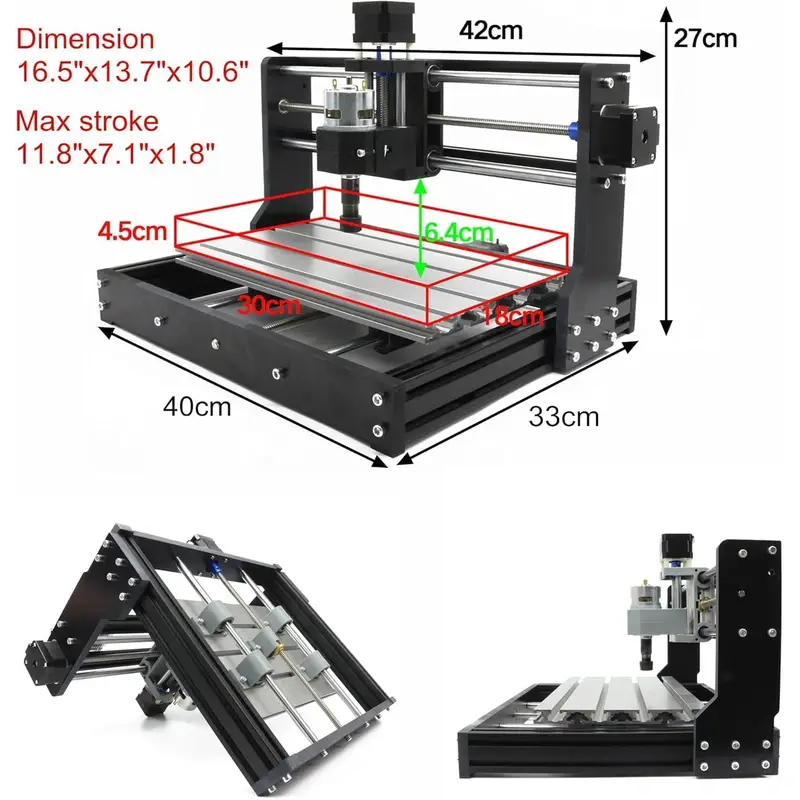

The 3018-PRO working area measures 300 × 180 × 45 mm (11.8 × 7.1 × 1.8 in). The frame measures 420 × 350 × 270 mm (16.53 × 13.78 × 10.63 in).

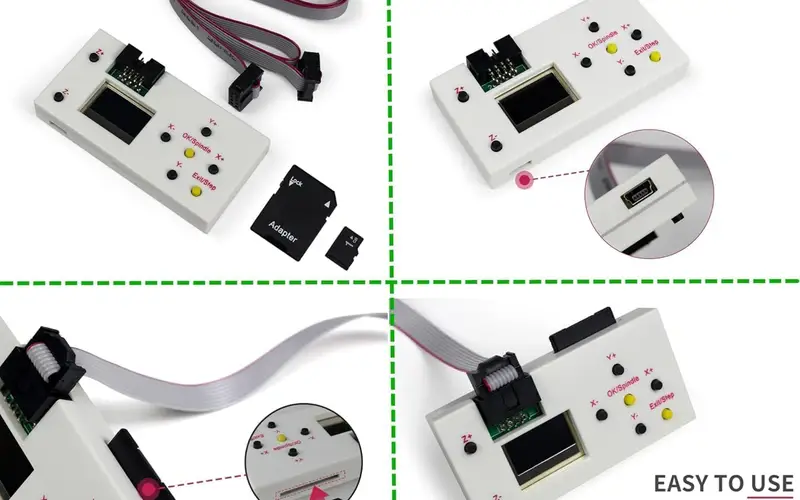

OFFLINE OPERATION
Set Positions and Run Files Without a Computer

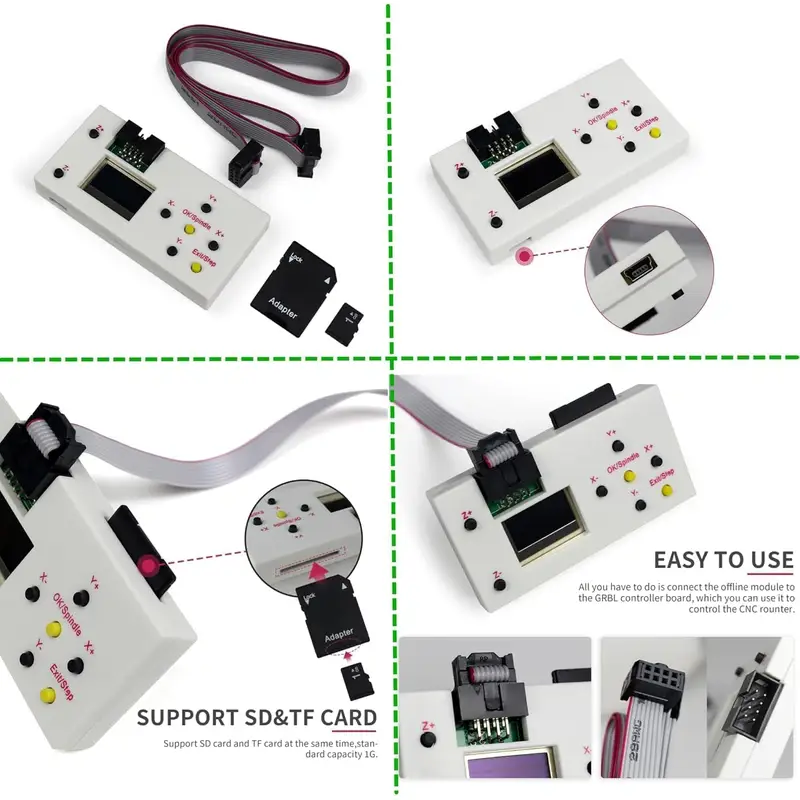

The included offline controller lets you manually position the X, Y and Z axes to set an engraving starting point and switch the spindle on or off. Its SD card reader accepts G-code or NC files saved in the card’s root directory.
SPINDLE AND MOTOR

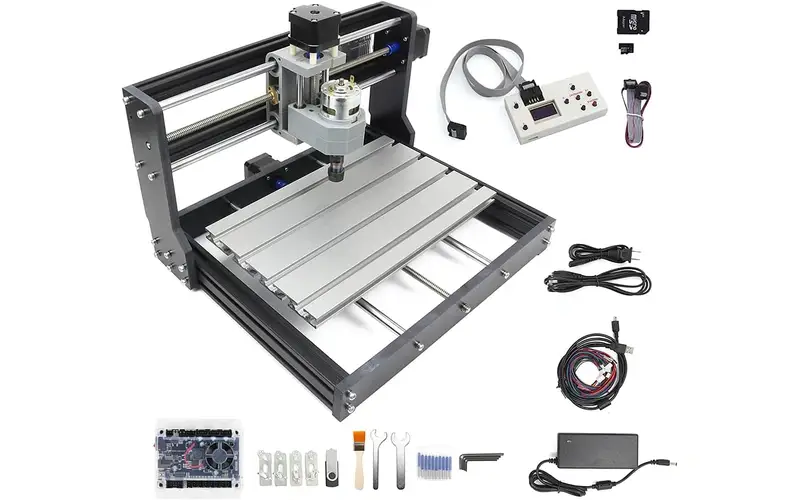

775 Spindle with NEMA 17 Motor Specifications
The 775 spindle is rated at 120 W and 12–36 V, with a listed speed of 10,000 rpm at 24 V. The NEMA 17 stepper motor specification is 1.33 A and 0.3 N·m (43 oz-in), with dimensions of 42 × 42 × 34 mm.
GRBL CONTROL
Ports for Setup and Machine Connections

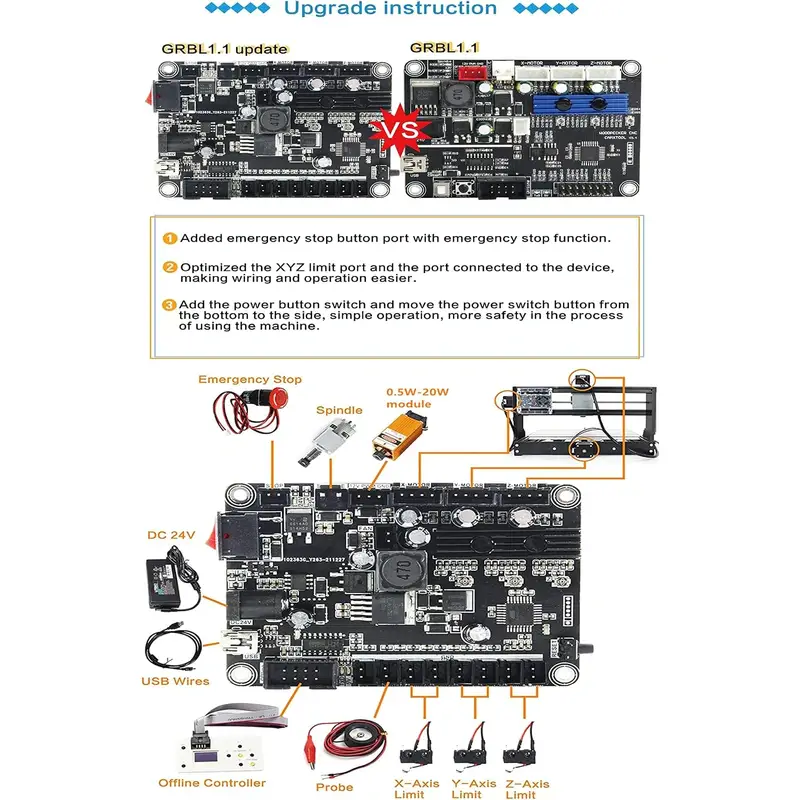

The GRBL 1.1f control board includes ports for an emergency-stop button, tool-setting probe and X, Y and Z axis limit switches. It also has a power switch and fan port.
ENGRAVING APPLICATIONS
Listed for Wood, Plastic and More
The supplied product information lists engraving applications for wood, plastic, acrylic, PVC and PCB.
Frequently Asked Questions
What is the working area?
The working area is 300 × 180 × 45 mm (11.8 × 7.1 × 1.8 in).
Can the 3018-PRO operate without a computer?
Yes. The included offline controller supports manual X, Y and Z positioning and manual spindle on/off control.
What spindle is specified?
The machine is listed with a 120 W 775 spindle rated at 12–36 V and 10,000 rpm at 24 V.
Which materials are listed for engraving?
The product information lists wood, plastic, acrylic, PVC and PCB.
How does the offline controller load machining files?
The controller has an SD card reader and can read G-code or NC files saved in the card’s root directory.
Which operating systems are listed for the GRBL software?
The supplied information lists Windows XP SP3, Windows 7, Windows 8, Windows 10 (32- or 64-bit), and Linux.
