DESKTOP FORMAT

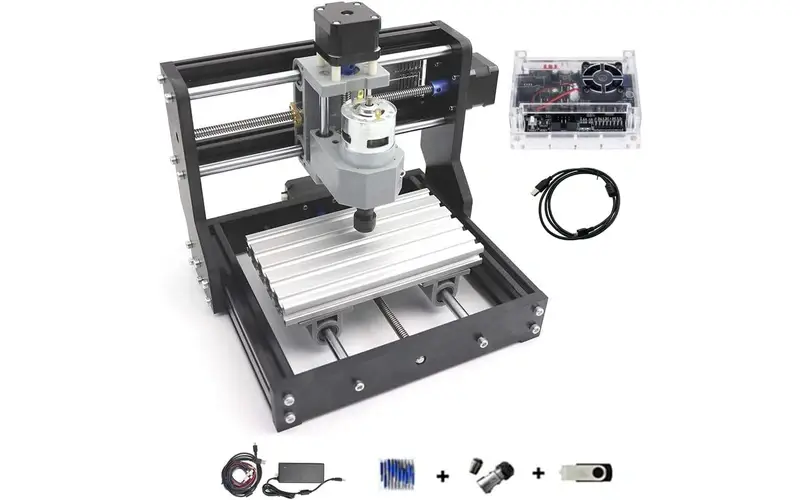

A Defined Workspace for Small CNC Projects

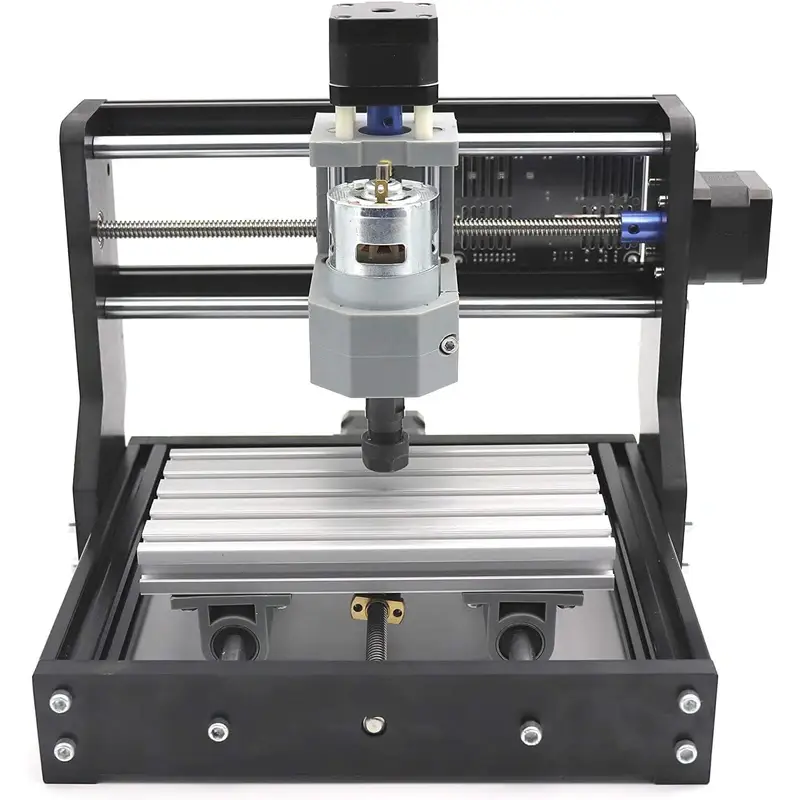

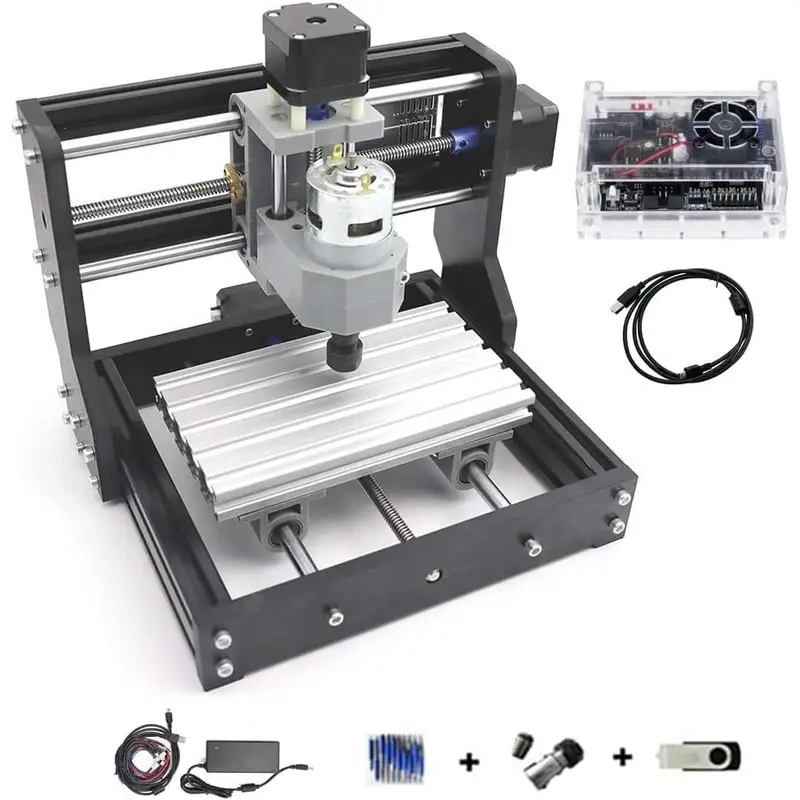

The 1610 PRO has a working area of 18 × 10 × 4.5 cm (7.08 × 3.93 × 1.77 in). Its frame measures 30 × 26 × 25 cm (11.81 × 10.23 × 9.84 in), providing the machine’s listed operating and overall dimensions.
SPINDLE AND MOTOR

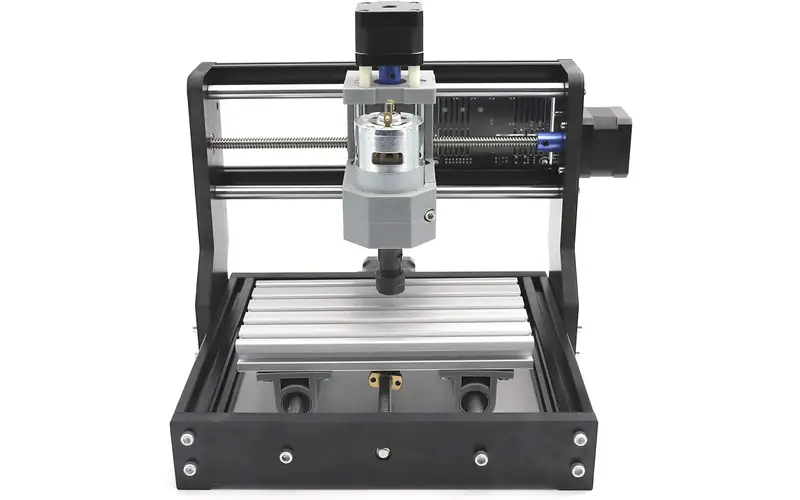

120 W Spindle with NEMA 17 Motor Specifications

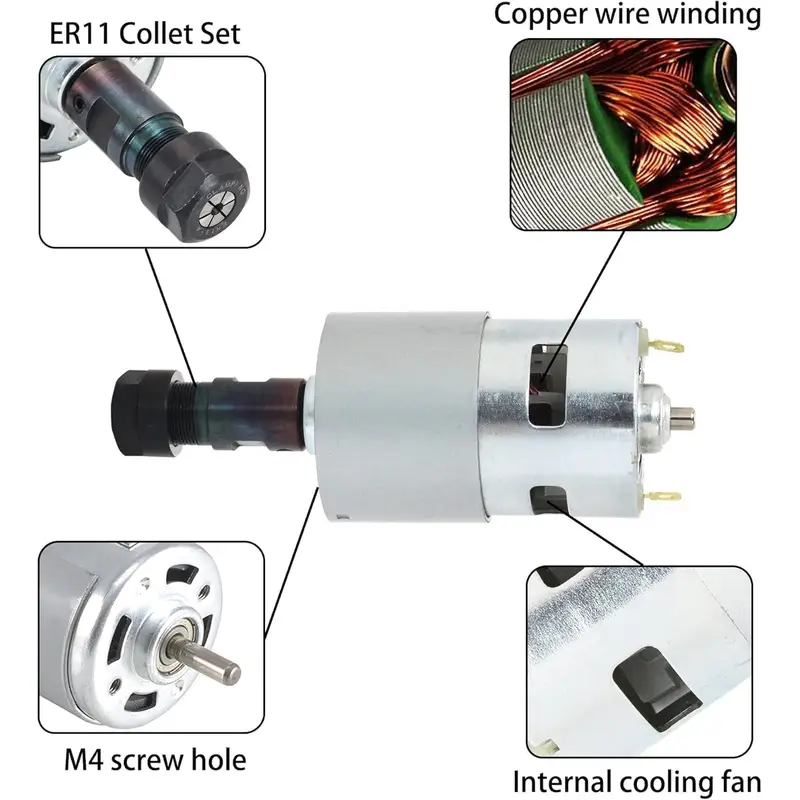

The PWM spindle is listed at 120 W, 45 mm in diameter and up to 10,000 rpm. The NEMA 17 stepper motor specification is 1.3 A and 0.3 N·m, with motor dimensions of 42 × 42 × 34 mm.
CONTROL

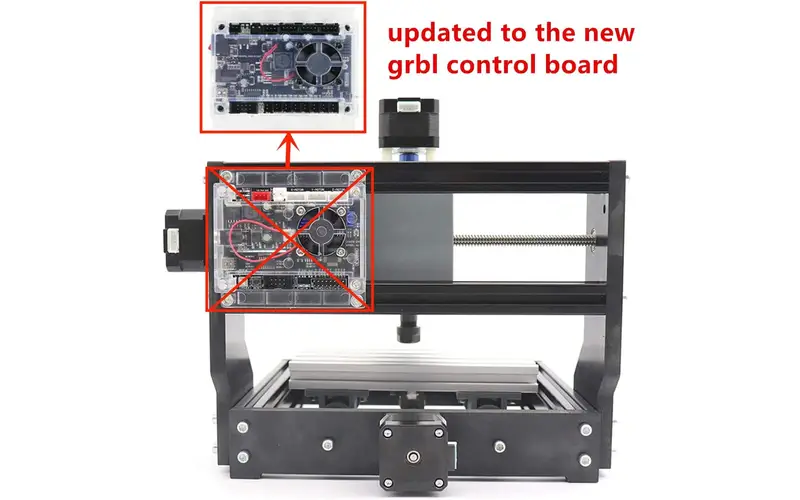

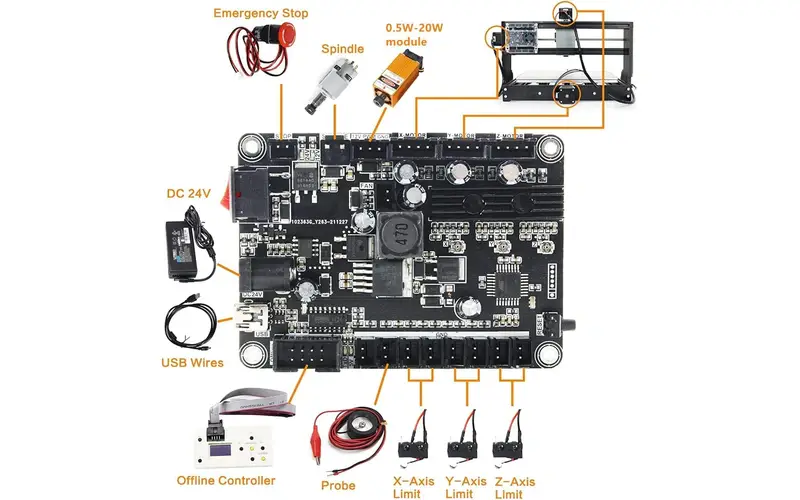

USB GRBL 1.1f Board with Setup Ports

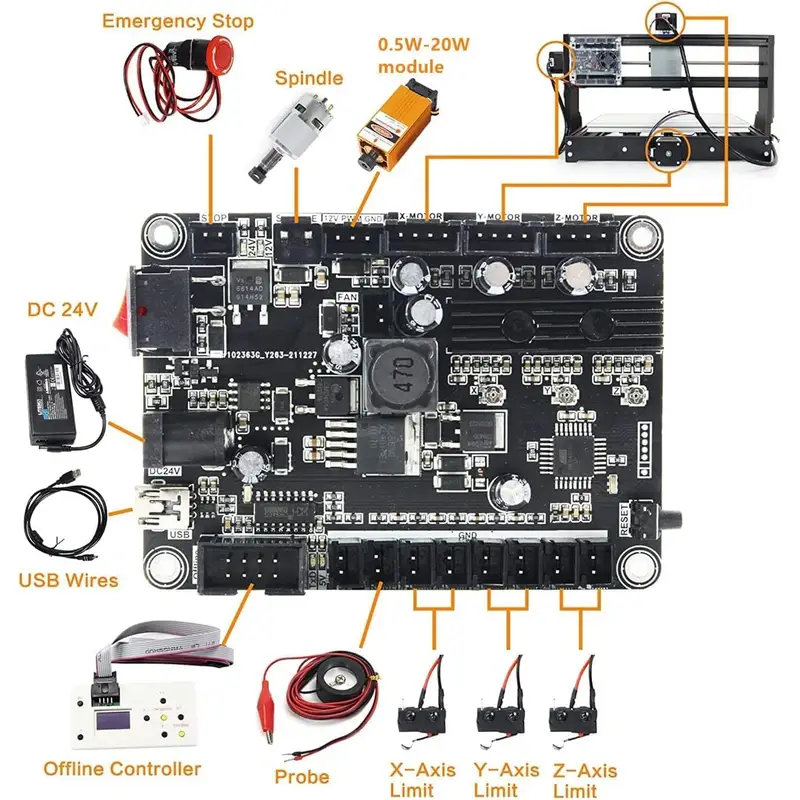

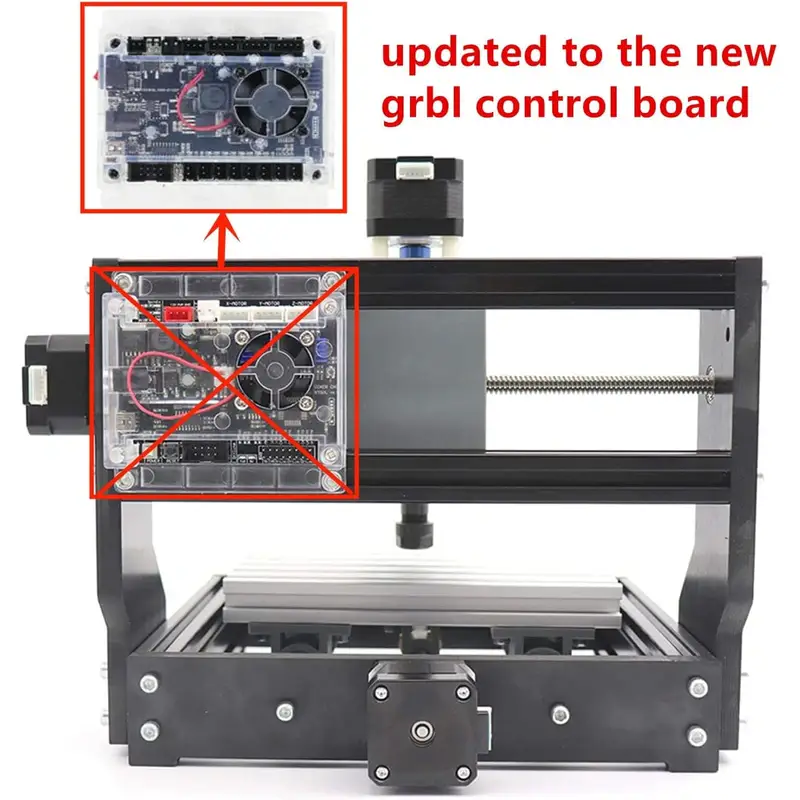

The control board uses GRBL 1.1f and provides ports for an emergency-stop button, tool setting or probing, X, Y and Z axis limits, and a cooling fan. The board also has a power switch.
SOFTWARE AND APPLICATIONS
GRBL Workflow and Listed Engraving Materials
The supplied information lists .nc, .txt, .tap and G-code files, with Windows XP SP3, Windows 7, 8 and 10 (32- or 64-bit), and Linux as supported systems. Listed engraving applications include wood, plastic, acrylic, PVC, PCB, copper and aluminum.
Frequently Asked Questions
What is the working area of the 1610 PRO?
The working area is 18 × 10 × 4.5 cm (7.08 × 3.93 × 1.77 in).
What spindle is specified for this CNC router?
The listed spindle is a 120 W PWM model, 45 mm in diameter, with a maximum speed of 10,000 rpm.
Which control system does the machine use?
It uses a USB-connected GRBL 1.1f control board.
Which operating systems are listed?
The supplied information lists Windows XP SP3, Windows 7, Windows 8, Windows 10 (32- or 64-bit), and Linux.
Which materials are listed for engraving?
The product information lists wood, plastic, acrylic, PVC, PCB, and soft metals such as copper and aluminum.
