WATER-COOLED SPINDLE

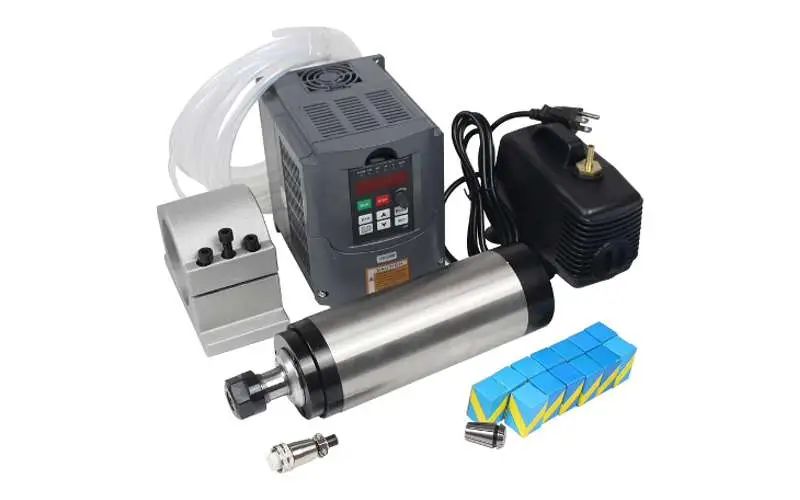

2.2 kW Power with ER20 Collet Compatibility

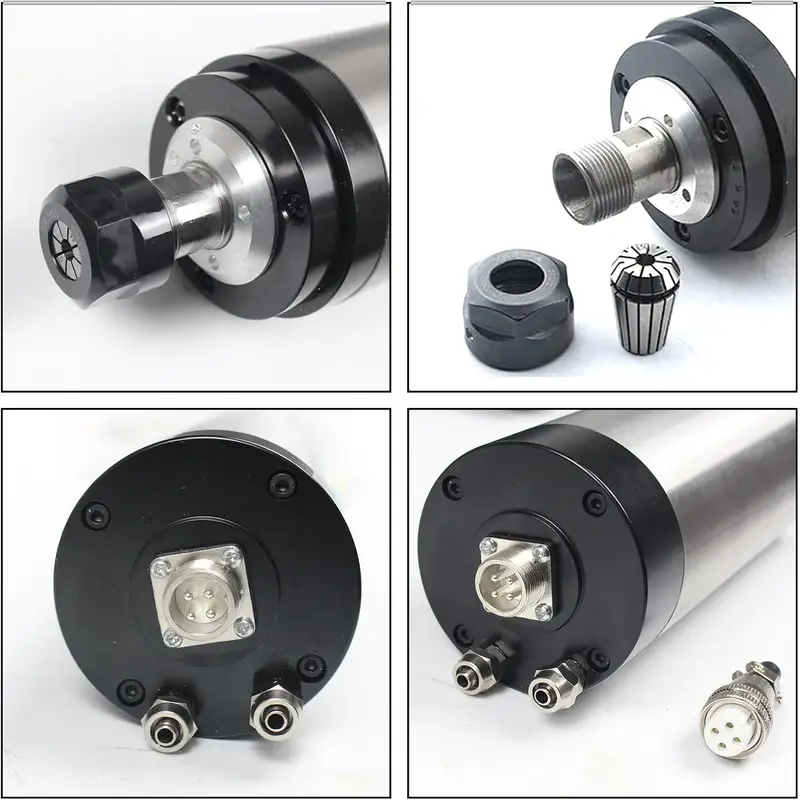

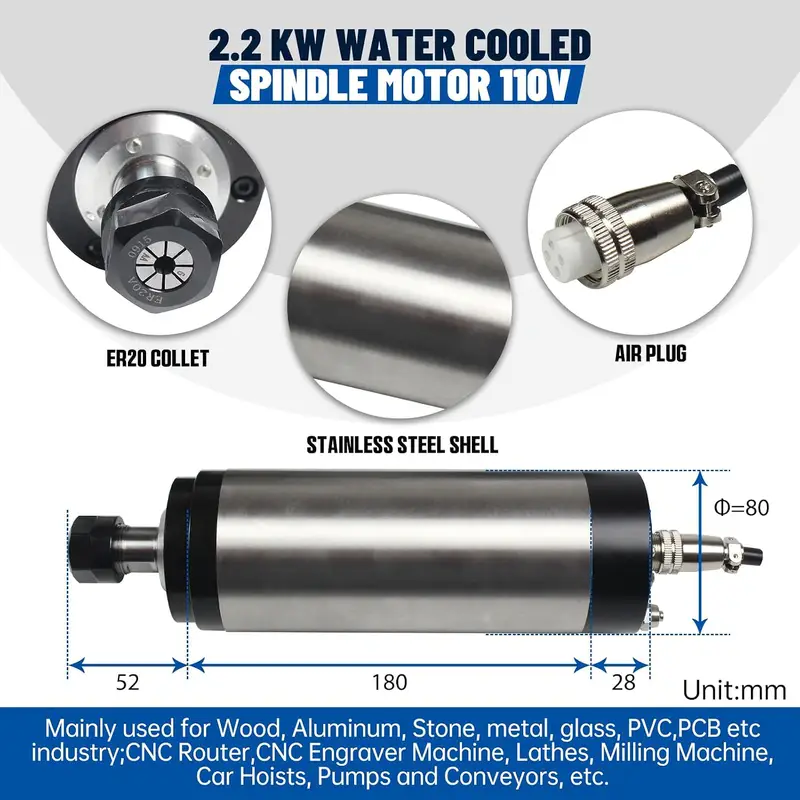

The water-cooled spindle is rated at 2.2 kW, 400 Hz and 0–24,000 rpm. It measures 80 × 200 mm, uses four grease-lubricated bearings and is listed at 8.5 A.

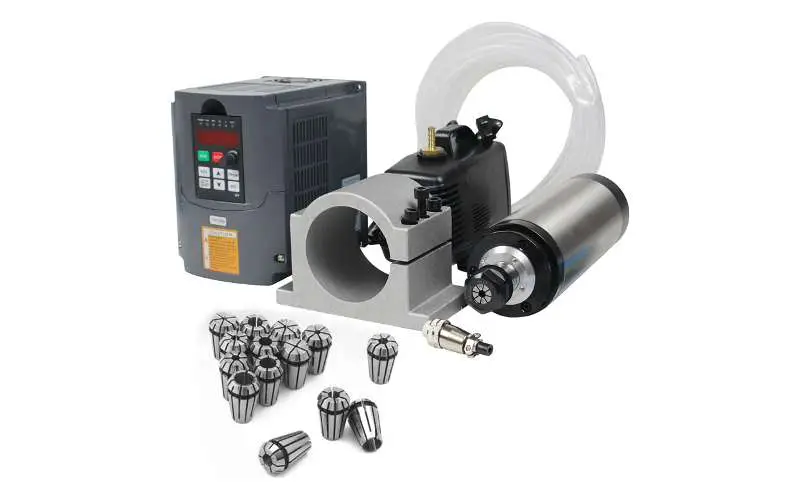

VARIABLE FREQUENCY DRIVE
110 V Single-Phase Input to Three-Phase Output

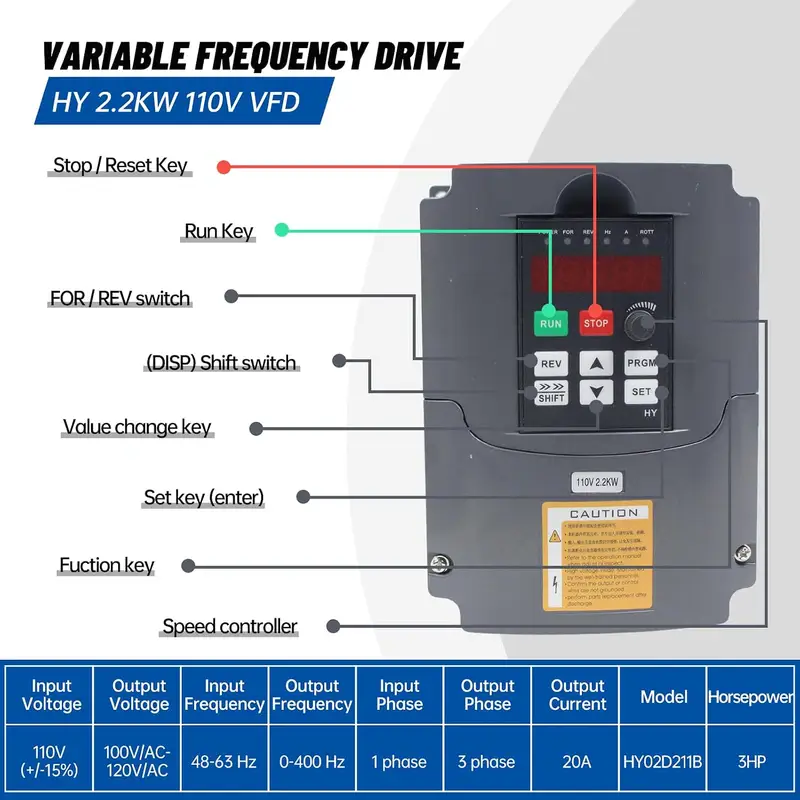

The 2.2 kW VFD accepts 110 V ±15% single-phase input at 48–63 Hz and supplies 100–120 V AC three-phase output at 0–400 Hz, with a listed output current of 20 A. Product information says its parameters are preset for the spindle.
COLLETS AND MOUNTING

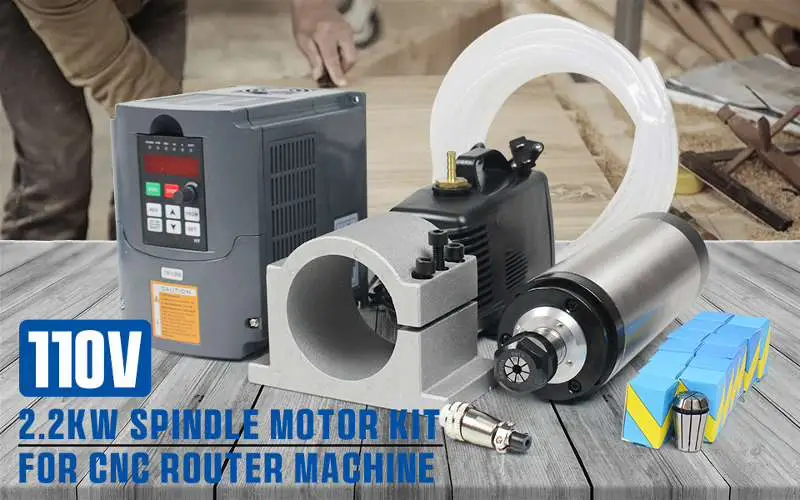

Fit the Spindle with an 80 mm Clamp

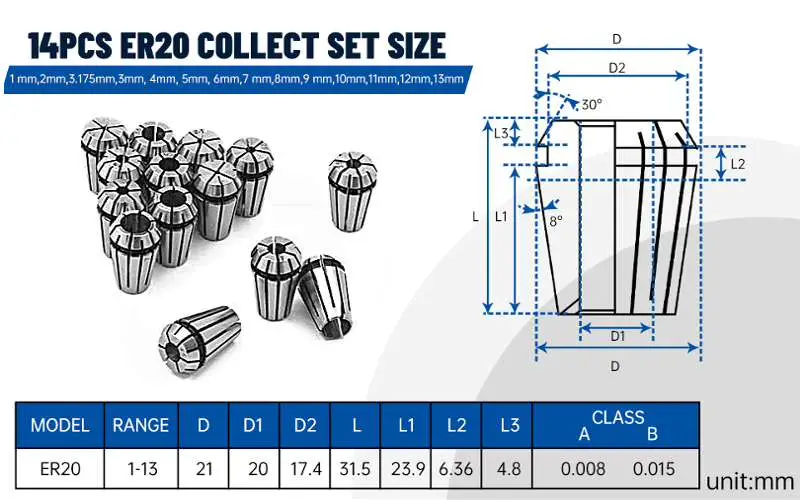

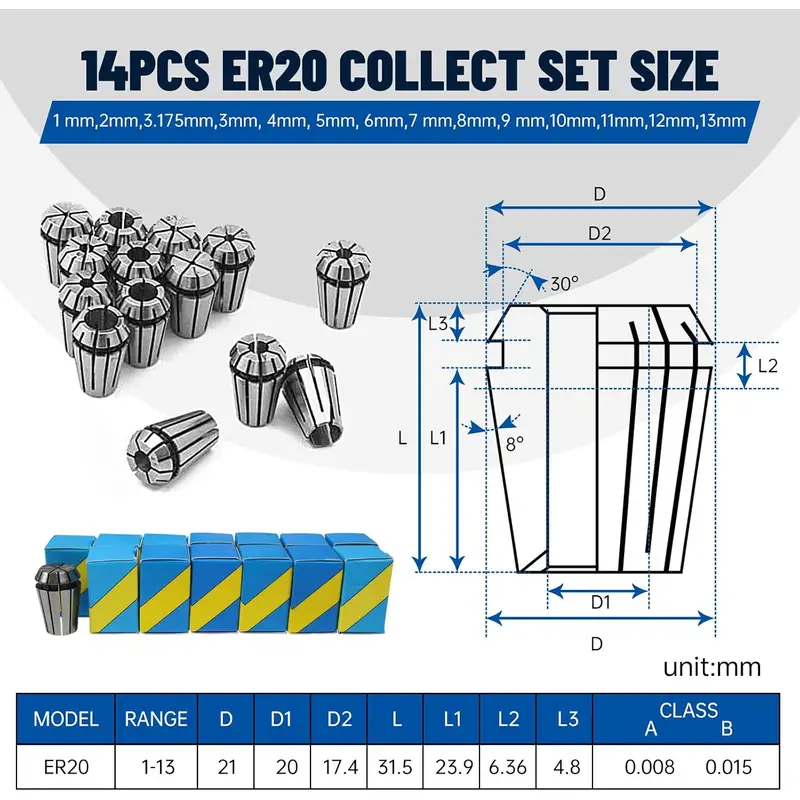

The cast-aluminum clamp has an 80 mm diameter and includes three installation screws. The 14-piece ER20 collet set lists sizes of 1, 2, 3, 3.175, 4, 5, 6, 7, 8, 9, 10, 11, 12 and 13 mm.
COOLING COMPONENTS

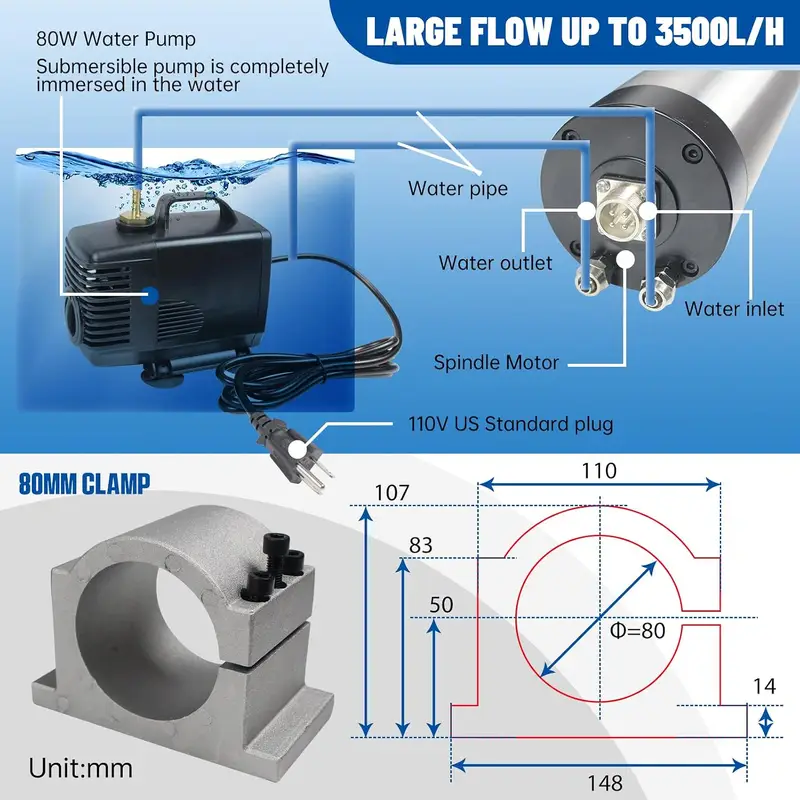

Pump and Pipe Included in the Kit
The 80 W pump is rated for 105–125 V AC, has a US plug and a listed flow rate of 3,500 L/h. The kit includes a 6 m pipe with an 8 mm water nozzle; the pump measures 153 × 88 × 108 mm.
Frequently Asked Questions

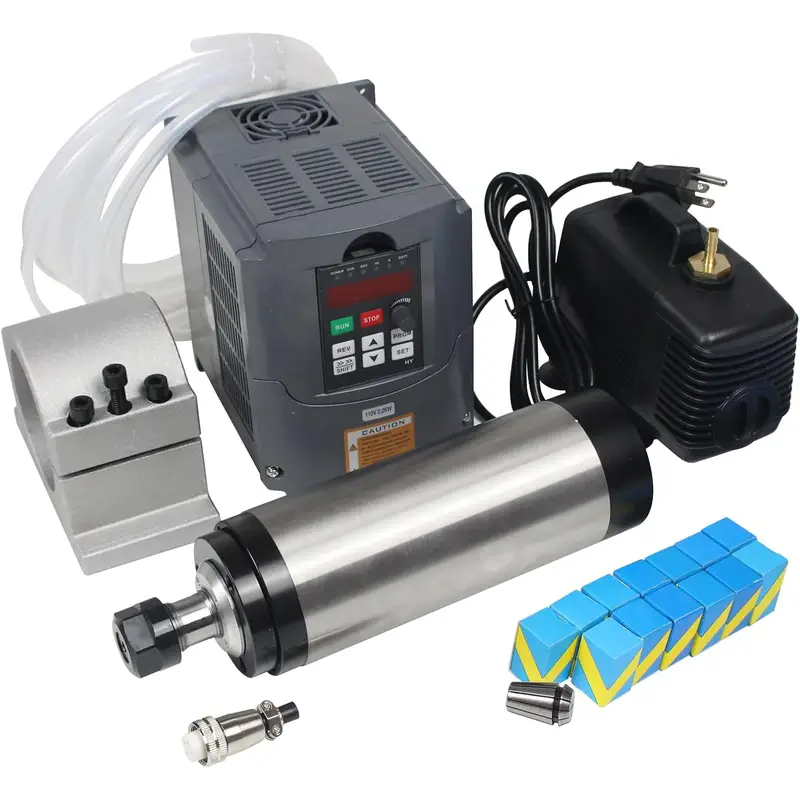

What components are included?
The kit lists a spindle, VFD, 80 mm clamp, water pump, pipe and 14-piece ER20 collet set.
What are the spindle’s rated power and speed?
The water-cooled spindle is rated at 2.2 kW, 400 Hz and up to 24,000 rpm.
What input power does the VFD require?
The VFD is listed for 110 V ±15% single-phase input at 48–63 Hz. Its output is three-phase, 100–120 V AC, at 0–400 Hz.
Which collet sizes are included?
The 14 ER20 collets are listed in sizes 1, 2, 3, 3.175, 4, 5, 6, 7, 8, 9, 10, 11, 12 and 13 mm.
What are the pump and pipe specifications?
The pump is rated at 80 W and 3,500 L/h, with 105–125 V AC input and a US plug. The included pipe is 6 m long, with an 8 mm water nozzle.
